ACSR-Aluminum Conductors, Steel Reinforced (DIN 48204)
Application
It is mainly used for overhead power transmission.
Standards
DIN48204: Aluminum conductors, steel reinforced ( New standard: DIN EN 50182 )
Construction:

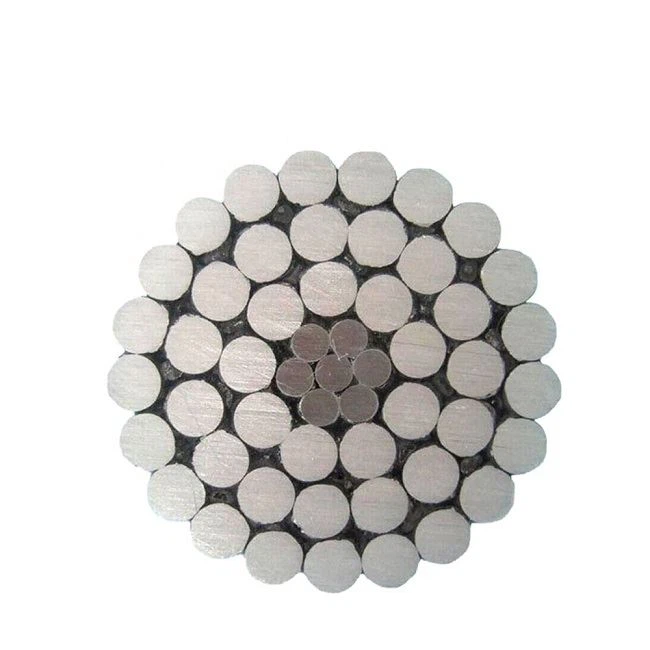

It has a core of zinc-coated steel wires surrounded by aluminium wires and which are used as stranded conductors.
Technical Parameter
| Area | Stranding and Wire Diameter | Overall Diameter | Linear Mass | Calculated Breaking Load | Maximum DC Resistance at 20℃ | ||||||
| Nominal | Actual | ||||||||||
| AL/ St | AL | St | Total | AL | St | mm | AL | St | Total | ||
| mm2 | mm2 | mm2 | mm2 | mm | mm | mm | kg/km | kg/km | kg/km | KN | Ω/km |
| 16/2.5 | 15.3 | 2.5 | 17.8 | 6/1.80 | 1/1.80 | 5.4 | 42 | 20 | 62 | 5.95 | 1.878 |
| 25/4.0 | 23.9 | 4 | 27.8 | 6/2.25 | 1/2.25 | 6.8 | 65 | 32 | 97 | 9.2 | 1.2002 |
| 35/6.0 | 34.3 | 5.7 | 40 | 6/2.70 | 1/2.70 | 8.1 | 94 | 46 | 140 | 12.65 | 0.8352 |
| 44/32.0 | 44 | 31.7 | 75.7 | 14/2.00 | 7/2.40 | 11.2 | 122 | 250 | 372 | 45 | 0.6573 |
| 50/8.0 | 48.3 | 8 | 56.3 | 6/3.20 | 1/3.20 | 9.6 | 132 | 64 | 196 | 17.1 | 0.5946 |
| 50/30 | 51.2 | 29.8 | 81 | 12/2.33 | 7/2.33 | 11.7 | 141 | 237 | 378 | 43.8 | 0.5643 |
| 70/12 | 69.9 | 11.4 | 81.3 | 26/1.85 | 7/1.44 | 11.7 | 193 | 91 | 284 | 26.8 | 0.413 |
| 95/15 | 94.4 | 15.3 | 109.7 | 26/2.15 | 7/1.67 | 13.6 | 260 | 123 | 383 | 35.75 | 0.3058 |
| 95/55 | 96.5 | 56.3 | 152.8 | 12/3.20 | 7/3.20 | 16.0 | 266 | 446 | 712 | 79.35 | 0.2992 |
| 105/75 | 105.7 | 75.5 | 181.5 | 14/3.10 | 19/2.25 | 17.5 | 292 | 299 | 891 | 108.45 | 0.2735 |
| 120/20 | 121.6 | 19.8 | 141.4 | 26/2.44 | 7/1.90 | 15.5 | 336 | 158 | 494 | 45.65 | 0.2374 |
| 120/70 | 122 | 71.3 | 193.3 | 12/3.60 | 7/3.60 | 18.0 | 337 | 564 | 901 | 100 | 0.2364 |
| 125/30 | 127.9 | 29.8 | 157.7 | 30/2.33 | 7/2.33 | 16.3 | 353 | 238 | 591 | 57.6 | 0.2259 |
| 150/25 | 148.9 | 24.2 | 173.1 | 26/2.70 | 7/2.10 | 17.1 | 411 | 194 | 605 | 55.25 | 0.1939 |
| 170/40 | 171.8 | 40.1 | 211.9 | 30/2.70 | 7/2.70 | 18.9 | 475 | 319 | 794 | 76.75 | 0.1682 |
| 185/30 | 163.8 | 29.8 | 213.6 | 26/3.00 | 7/2.33 | 19.0 | 507 | 239 | 746 | 66.2 | 0.1571 |
| 210/35 | 209.1 | 34.1 | 243.2 | 26/3.20 | 7/2.49 | 20.3 | 577 | 273 | 850 | 74.9 | 0.138 |
| 210/50 | 212.1 | 49.5 | 261.6 | 30/3.00 | 7/3.00 | 21.0 | 587 | 394 | 981 | 93.9 | 0.1362 |
| 230/30 | 230.9 | 29.8 | 260.7 | 24/3.50 | 7/2.33 | 21.0 | 638 | 239 | 877 | 73.1 | 0.1249 |
| 240/40 | 243 | 39.5 | 282.5 | 26/3.45 | 7/2.68 | 21.9 | 671 | 316 | 987 | 86.4 | 0.1188 |
| 265/35 | 263.7 | 34.1 | 297.8 | 24/3.74 | 7/2.49 | 22.4 | 728 | 274 | 1002 | 83.05 | 0.1094 |
| 300/50 | 304.3 | 49.5 | 353.7 | 26/3.86 | 7/3.00 | 24.5 | 840 | 396 | 1236 | 107 | 0.09487 |
| 305/40 | 304.6 | 39.5 | 344.1 | 54/2.68 | 7/2.68 | 24.1 | 843 | 317 | 1160 | 99.4 | 0.0949 |
| 340/30 | 339.3 | 29.8 | 369.1 | 48/3.00 | 7/2.33 | 25.0 | 938 | 242 | 1180 | 92.9 | 0.08509 |
| 380/50 | 382 | 49.5 | 431.5 | 54/3.00 | 7/3.00 | 27.0 | 1056 | 397 | 1453 | 123.1 | 0.07573 |
| 385/35 | 386 | 31.4 | 420.1 | 48/3.20 | 7/2.49 | 26.7 | 1067 | 277 | 1344 | 104.8 | 0.07478 |
| 435/55 | 434.3 | 56.3 | 490.6 | 54/3.20 | 7/3.20 | 28.8 | 1203 | 450 | 1653 | 136.45 | 0.06656 |
| 450/40 | 448.7 | 39.5 | 488.2 | 48/3.45 | 7/2.68 | 28.7 | 1241 | 320 | 1561 | 120.75 | 0.06434 |
| 490/65 | 490.3 | 63.6 | 553.9 | 54/3.40 | 7/3.40 | 30.6 | 1356 | 510 | 1866 | 153.1 | 0.05896 |
| 495/35 | 494.1 | 34.1 | 526.2 | 45/3.74 | 7/2.49 | 29.9 | 1363 | 283 | 1646 | 121.8 | 0.05846 |
| 510/45 | 510.2 | 45.3 | 555.5 | 48/3.68 | 7/2.87 | 30.7 | 1413 | 365 | 1778 | 136.65 | 0.05655 |
| 550/70 | 550 | 71.3 | 621.3 | 54/3.60 | 7/3.60 | 32.4 | 1520 | 572 | 2092 | 170.6 | 0.05259 |
| 560/50 | 561.7 | 49.5 | 611.2 | 48/3.86 | 7/3.00 | 32.2 | 1553 | 401 | 1954 | 148.95 | 0.0514 |
| 570/40 | 565.5 | 39.5 | 610.3 | 45/4.00 | 7/2.68 | 32.2 | 1563 | 325 | 1888 | 139 | 0.05108 |
| 650/45 | 698.8 | 45.3 | 653.49 | 45/4.30 | 7/2.87 | 34.4 | 1791 | 372 | 2163 | 155.52 | 0.0442 |
| 680/85 | 678.8 | 86 | 764.8 | 54/4.00 | 19/2.40 | 36.0 | 1866 | 702 | 2570 | 210.4 | 0.0426 |
| 1045/45 | 1045.58 | 45.3 | 1090.9 | 72/4.30 | 7/2.87 | 43.0 | 2879 | 370 | 3249 | 217.87 | 0.0277 |
