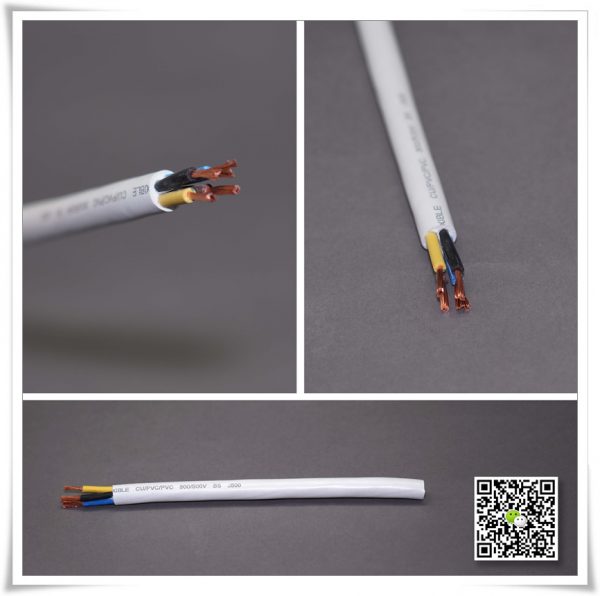

Flexible Cord 3182/3183Y/3184Y/3185Y & 3192Y (H05VV-F & H05VVH2-F)
Ordinary Duty PVC Insulated and Sheathed Flexible Cord, 300/500V, 70º C
3182/3183Y/3184Y/3185Y & 3192Y (H05VV-F & H05VVH2-F)
Application
These cables are suited for medium mechanical stress in damp and wet environments such as
refrigerators, washing machines, spin dryers and other appliances, These cables are also suited
for cooking and heating apparatus, provided that the cable does not come into direct contact with
the hot parts of the apparatus or with any other heat source.
Standard
BS EN 50525-2-11,BS 6500, BS7919
Construction
Conductor: Bare copper fine wire, stranded to IEC 60228 Class 5
Insulation: PVC compound, type TI 2
Color core identification and sequence
2- core: blue and brown
3-core: green/yellow, blue and brown
4-core: green/yellow, brown, black, grey ; or green/yellow, blue, brown, black
5-core: green/yellow, blue, brown, black, grey
Assembly: for circular cords,the cores shall be twisted togeter.
1) Filler: A center filler may be used.
2) A tape/separator may be applied around the cores assembly
Sheath: PVC compound, type TM 2
Color of sheath: Not specified
Technical Characteristics
Rated voltage: 300/500V
Test voltage: 2000V
Flexing bending radius: 7.5 x Ø
Static bending radius: 4 x Ø
Operating temperature: -5º C to +70º C
Harmonized Code H05VV-F, H05VVH2-F
| No. of Cores x Nominal Cross Sectional Area | No. of wires | Wire Dia. | Nom. PVC Insulation Thickness | Nom.PVC Sheath Thickness | Overall Diameter | Min. Insulation Resistance
at 70ºC |
Maximum Resistance of Conductor at 20ºC | |
| Min. OD | Max. OD | Plain Copper Wires | ||||||
| # x mm² | mm | mm | mm | mm | mm | Mohm.km | Ω/km | |
| 3182Y (H05VV-F) | ||||||||
| 2 x 0.75 | 24 | 0.2 | 0.6 | 0.8 | 5.7 | 7.2 | 0.011 | 26.0 |
| 2 x 1 | 32 | 0.2 | 0.6 | 0.8 | 5.9 | 7.5 | 0.010 | 19.5 |
| 2 x 1.5 | 30 | 0.25 | 0.7 | 0.8 | 6.8 | 8.6 | 0.010 | 13.3 |
| 2 x 2.5 | 50 | 0.25 | 0.8 | 1.0 | 8.4 | 10.6 | 0.0095 | 7.98 |
| 2 x 4 | 56 | 0.3 | 0.8 | 1.1 | 10.0 | 12.0 | 0.0078 | 4.95 |
| 3183Y (H05VV-F) | ||||||||
| 3 x 0.75 | 24 | 0.2 | 0.6 | 0.8 | 6.0 | 7.6 | 0.011 | 26.0 |
| 3 x 1 | 32 | 0.2 | 0.6 | 0.8 | 6.3 | 8.0 | 0.010 | 19.5 |
| 3 x 1.5 | 30 | 0.25 | 0.7 | 0.9 | 7.4 | 9.4 | 0.010 | 13.3 |
| 3 x 2.5 | 50 | 0.25 | 0.8 | 1.1 | 9.2 | 11.4 | 0.0095 | 7.98 |
| 3 x 4 | 56 | 0.3 | 0.8 | 1.2 | 10.5 | 13.1 | 0.0078 | 4.95 |
| 3184Y (H05VV-F) | ||||||||
| 4 x 0.75 | 24 | 0.2 | 0.6 | 0.8 | 6.6 | 8.3 | 0.011 | 26.0 |
| 4 x 1 | 32 | 0.2 | 0.6 | 0.9 | 7.1 | 9.0 | 0.010 | 19.5 |
| 4 x 1.5 | 30 | 0.25 | 0.7 | 1.0 | 8.4 | 10.5 | 0.010 | 13.3 |
| 4 x 2.5 | 50 | 0.25 | 0.8 | 1.1 | 10.1 | 12.5 | 0.0095 | 7.98 |
| 4 x 4 | 56 | 0.3 | 0.8 | 1.2 | 11.5 | 14.3 | 0.0078 | 4.95 |
| 3185Y (H05VV-F) | ||||||||
| 5 x 0.75 | 24 | 0.2 | 0.6 | 0.9 | 7.4 | 9.3 | 0.011 | 26.0 |
| 5 x 1 | 32 | 0.2 | 0.6 | 0.9 | 7.8 | 9.8 | 0.010 | 19.5 |
| 5 x 1.5 | 30 | 0.25 | 0.7 | 1.1 | 9.3 | 11.6 | 0.010 | 13.3 |
| 5 x 2.5 | 50 | 0.25 | 0.8 | 1.2 | 11.2 | 13.9 | 0.0095 | 7.98 |
| 5 x 4 | 56 | 0.3 | 0.8 | 1.4 | 13.0 | 16.1 | 0.0078 | 4.95 |
| 3192Y (H05VVH2-F) | ||||||||
| 2 x 0.75 | 24 | 0.2 | 0.6 | 0.8 | 3.7 x 6.0 | 4.5 x 7.2 | 0.011 | 26.0 |
| 2 x 1 | 32 | 0.2 | 0.6 | 0.8 | 3.9 x 6.2 | 4.7 x 7.5 | 0.010 | 19.5 |
| 2 x 1.5 | 50 | 0.25 | 0.7 | 0.8 | 4.2 x 7.0 | 5.2 x 8.6 | 0.010 | 13.3 |
