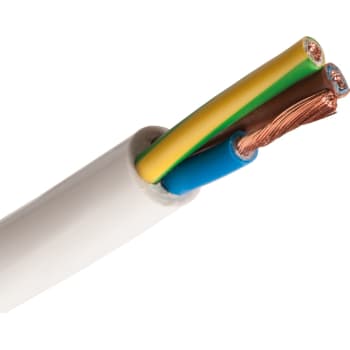

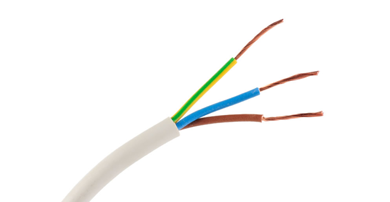

H03Z1Z1-F, H05Z1Z1-F
300/300V for H03Z1Z1-F, 300/500V for H05Z1Z1-F, 70º C
Application
These cables are suitable for cooking and heating equipment, providing that the cable is not in contact with hot components or heat radiation. Not suitable for use in high temperature areas (like in lighting equipment), outside buildings, in industrial or agricultural buildings, connection of electrical power tools.
Standard
HD21.14 S1, VDE 0281 Part 14, VDE 0482-332-1-2, EN60332-1, EN50267, EN50363
Construction
Conductor: Bare copper fine wire, stranded to IEC 60228 class 5 and HD 383 class 5
Insulation:Thermoplastic Halogen-fee
Green-yellow grounding (3 conductors and above)
Sheath: Thermoplastic halogen-fee
Technical Characteristics
Rated voltage: 300/300V for H03Z1Z1-F, 300/500V for H05Z1Z1-F
Test voltage: 2000V for H03Z1Z1-F, 2500V for H05Z1Z1-F
Flexing bending radius: 7.5 x Ø
Fixed bending radius: 4.0 x Ø
Operating Temperature: -5º C to +70º C
Smoke density acc. to EN 50268 / IEC 61034
Corrosiveness of combustion gases acc. to EN 50267-2-2, IEC 60754-2
Flame test: flame-retardant acc. to EN 50265-2-1, IEC 60332.1
Technical Parameter
| No. of Cores x Nominal Cross Sectional Area | No. of wires | Wire Dia. | Nom. LSOH Insulation Thickness | Nom. LSOH Sheath Thickness | Overall Diameter | Min. Insulation Resistance at 70°C | Maximum Resistance of Conductor at 20°C | |
| Min. OD | Max. OD | Plain Copper Wires | ||||||
| # x mm² | mm | mm | mm | mm | mm | Mohm.km | Ω/km | |
| H03Z1Z1-F | ||||||||
| 2 x 0.5 | 16 | 0.2 | 0.5 | 0.6 | 4.6 | 5.9 | 0.011 | 39.0 |
| 2 x 0.75 | 24 | 0.2 | 0.5 | 0.6 | 4.9 | 6.3 | 0.010 | 26.0 |
| 3 x 0.5 | 16 | 0.2 | 0.5 | 0.6 | 4.9 | 6.3 | 0.011 | 39.0 |
| 3 x 0.75 | 24 | 0.2 | 0.5 | 0.6 | 5.2 | 6.7 | 0.010 | 26.0 |
| 4 x 0.5 | 16 | 0.2 | 0.5 | 0.6 | 5.4 | 6.9 | 0.011 | 39.0 |
| 4 x 0.75 | 24 | 0.2 | 0.5 | 0.6 | 5.7 | 7.3 | 0.010 | 26.0 |
| H05Z1Z1-F | ||||||||
| 2 x 0.75 | 24 | 0.2 | 0.6 | 0.8 | 5.7 | 7.2 | 0.011 | 26.0 |
| 2 x 1 | 32 | 0.2 | 0.6 | 0.8 | 5.9 | 7.5 | 0.010 | 19.5 |
| 2 x 1.5 | 30 | 0.25 | 0.7 | 0.8 | 6.8 | 8.6 | 0.010 | 13.3 |
| 2 x 2.5 | 50 | 0.25 | 0.8 | 1.0 | 8.4 | 10.6 | 0.0095 | 7.98 |
| 2 x 4 | 56 | 0.3 | 0.8 | 1.1 | 9.7 | 12.1 | 0.0078 | 4.95 |
| 3 x 0.75 | 24 | 0.2 | 0.6 | 0.8 | 6.0 | 7.6 | 0.011 | 26.0 |
| 3 x 1 | 32 | 0.2 | 0.6 | 0.8 | 6.3 | 8.0 | 0.010 | 19.5 |
| 3 x 1.5 | 30 | 0.25 | 0.7 | 0.9 | 7.4 | 9.4 | 0.010 | 13.3 |
| 3 x 2.5 | 50 | 0.25 | 0.8 | 1.1 | 9.2 | 11.4 | 0.0095 | 7.98 |
| 3 x 4 | 56 | 0.3 | 0.8 | 1.2 | 10.5 | 13.1 | 0.0078 | 4.95 |
| 4 x 0.75 | 24 | 0.2 | 0.6 | 0.8 | 6.6 | 8.3 | 0.011 | 26.0 |
| 4 x 1 | 32 | 0.2 | 0.6 | 0.9 | 7.1 | 9.0 | 0.010 | 19.5 |
| 4 x 1.5 | 30 | 0.25 | 0.7 | 1.0 | 8.4 | 10.5 | 0.010 | 13.3 |
| 4 x 2.5 | 50 | 0.25 | 0.8 | 1.1 | 10.1 | 12.5 | 0.0095 | 7.98 |
| 4 x 4 | 56 | 0.3 | 0.8 | 1.2 | 11.5 | 14.3 | 0.0078 | 4.95 |
| 5 x 0.75 | 24 | 0.2 | 0.6 | 0.9 | 7.4 | 9.3 | 0.011 | 26.0 |
| 5 x 1 | 32 | 0.2 | 0.6 | 0.9 | 7.8 | 9.8 | 0.010 | 19.5 |
| 5 x 1.5 | 30 | 0.25 | 0.7 | 1.1 | 9.3 | 11.6 | 0.010 | 13.3 |
| 5 x 2.5 | 50 | 0.25 | 0.8 | 1.2 | 11.2 | 13.9 | 0.0095 | 7.98 |
| 5 x 4 | 56 | 0.3 | 0.8 | 1.4 | 13.0 | 16.1 | 0.0078 | 4.95 |
