H07V-R, 450/750V, 70º C
Application
These cables are preferably for installation indoors, in cable ducts and in industrial plants or switching stations, under ground installation. Can be used in switchboards and distributor boards or where a thicker strand of multi-wire is required.
Standard
HD 21.3 S3, VDE 0281 Part 3
Construction

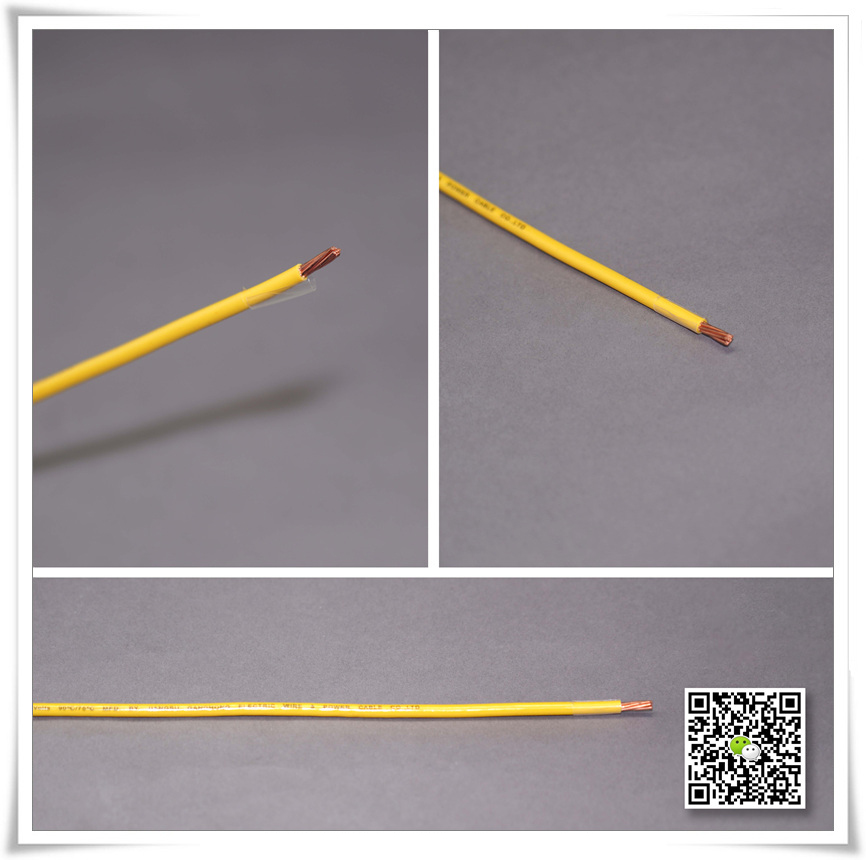

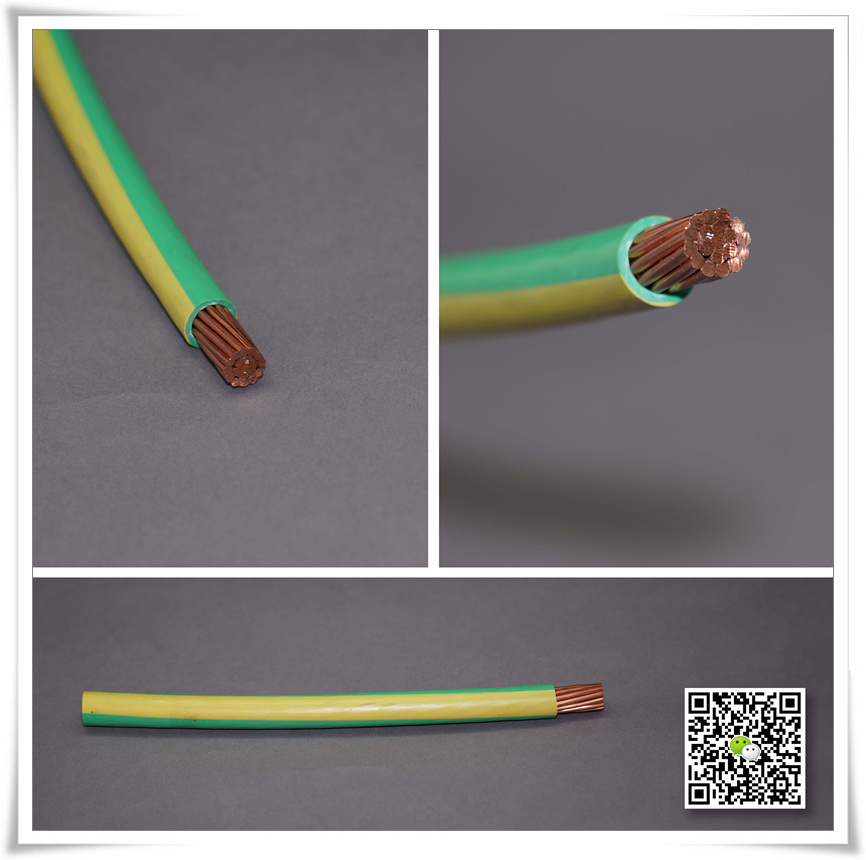

Conductor: stranded bare copper wire
Strands to HD383 Class 2, DIN VDE 0295 Class 2 and IEC 60228 Class 2
Insulation: PVC compound
Technical Characteristics
Rated voltage: 450/750V for H07V-R
Test voltage: 2500V for H07V-R
Flexing bending radius: 15 x Ø
Static bending radius: 15 x Ø
Operating temperature: -5º C to +70º C
Flame retardant: IEC 60332.1
Technical Parameter
| Nominal Cross Sectional Area | No. of wires | Wire Dia. | Nom. PVC Insulation Thickness | Overall Diameter | Min. Insulation Resistance at 70°C | Maximum Resistance of Conductor at 20°C | |
| Min. OD | Max. OD | Plain Copper Wires | |||||
| mm² | mm | mm | mm | mm | Mohm.km | Ω/km | |
| 1.5 | 7 | 0.52 | 0.7 | 2.7 | 3.3 | 0.010 | 12.1 |
| 2.5 | 7 | 0.67 | 0.8 | 3.3 | 4.0 | 0.009 | 7.41 |
| 4 | 7 | 0.85 | 0.8 | 3.8 | 4.6 | 0.0077 | 4.61 |
| 6 | 7 | 1.05 | 0.8 | 4.3 | 5.2 | 0.0065 | 3.08 |
| 10 | 7 | 1.35 | 1.0 | 5.6 | 6.7 | 0.0065 | 1.83 |
| 16 | 7 | 1.70 | 1.0 | 6.4 | 7.8 | 0.005 | 1.15 |
| 25 | 7 | 2.13 | 1.2 | 8.1 | 9.7 | 0.0043 | 0.727 |
| 35 | 7 | 2.52 | 1.2 | 9.0 | 10.9 | 0.0043 | 0.524 |
| 50 | 19 | 1.83 | 1.4 | 10.6 | 12.8 | 0.0035 | 0.387 |
| 70 | 19 | 2.17 | 1.4 | 12.1 | 14.6 | 0.0035 | 0.268 |
| 95 | 19 | 2.52 | 1.6 | 14.1 | 17.1 | 0.0032 | 0.193 |
| 120 | 37 | 2.03 | 1.6 | 15.6 | 18.8 | 0.0032 | 0.153 |
| 150 | 37 | 2.27 | 1.8 | 17.3 | 20.9 | 0.0032 | 0.124 |
| 185 | 37 | 2.52 | 2.0 | 19.3 | 23.3 | 0.0032 | 0.0991 |
| 240 | 61 | 2.24 | 2.2 | 22.0 | 26.6 | 0.0032 | 0.0754 |
| 300 | 61 | 2.50 | 2.4 | 24.5 | 29.6 | 0.0030 | 0.0601 |
| 400 | 61 | 2.89 | 2.6 | 27.5 | 33.2 | 0.0028 | 0.0470 |
