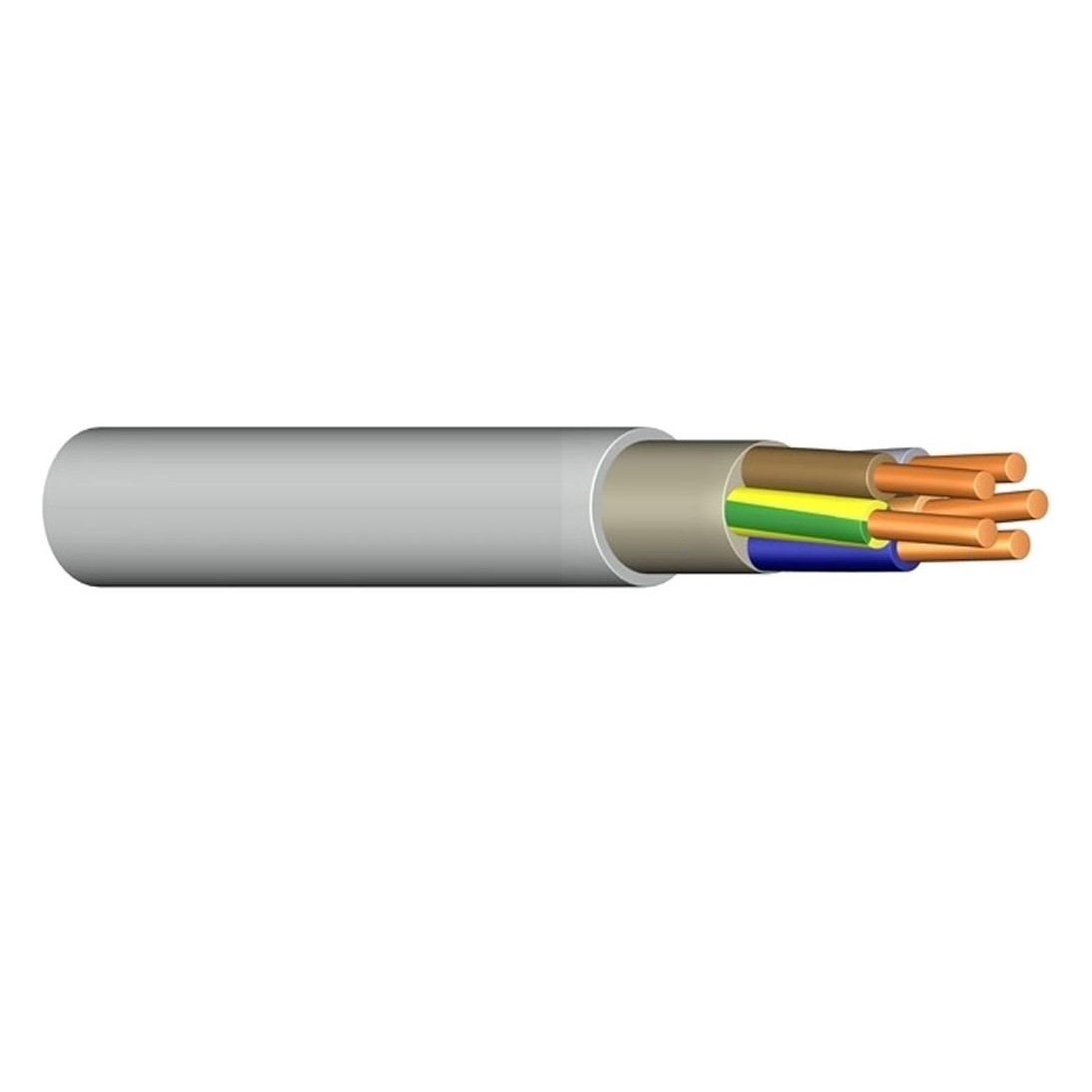

Light PVC Sheathed Cables 300/500V 70℃ (Type 60227 IEC 10)

Type 60227 IEC 10

FEATURES

300/500V

70℃

IEC 60227-4

APPLICATION

For fixed wiring

CONSTRUCTION

Conductor

No. of conductors: 2, 3, 4, or 5

The conductors shall comply with requirements of IEC 60228:

• Class 1 for solid conductors
• Class 2 for stranded conductors

Insulation

PVC compound of Type PVC/C

Assembly of cores

The cores shall be twisted together.

Inner covering

Extruded un-vulcanized rubber or plastic compound

Sheath

PVC compound of type PVC/ST4

General data for type 60227 IEC 10

1	2	3	4	5	6	7	8
Number and nominal cross- sectional area of conductors	Class of Conductor	Insulation Thickness	Thickness of inner covering	Thickness of sheath	Mean overall diameter		Minimum insulation resistance at 70℃
	IEC 60228	Specified value	Approx. value	Specified value	Lower limit	Upper limit
mm2		mm	mm	mm	mm	mm	MΩ·km
2 x 1.5	1	0.7	0.4	1.2	7.6	10.0	0.011
	2	0.7	0.4	1.2	7.8	10.5	0.010
2 x 2.5	1	0.8	0.4	1.2	8.6	11.5	0.010
	2	0.8	0.4	1.2	9.0	12.0	0.009
2 x 4	1	0.8	0.4	1.2	9.6	12.5	0.0085
	2	0.8	0.4	1.2	10.0	13.0	0.0077
2 x 6	1	0.8	0.4	1.2	10.5	13.5	0.0070
	2	0.8	0.4	1.2	11.0	14.0	0.0065
2 x 10	1	1.0	0.6	1.4	13.0	16.5	0.0070
	2	1.0	0.6	1.4	13.5	17.5	0.0065
2 x 16	2	1.0	0.6	1.4	15.5	20.0	0.0052
2 x 25	2	1.2	0.8	1.4	18.5	24.0	0.0050
2 x 35	2	1.2	1.0	1.6	21.0	27.5	0.0044
3 x 1.5	1	0.7	0.4	1.2	8.0	10.5	0.011
	2	0.7	0.4	1.2	8.2	11.0	0.010
3 x 2.5	1	0.8	0.4	1.2	9.2	12.0	0.010
	2	0.8	0.4	1.2	9.4	12.5	0.009
3 x 4	1	0.8	0.4	1.2	10.0	13.0	0.0085
	2	0.8	0.4	1.2	10.5	13.5	0.0077
3 x 6	1	0.8	0.4	1.4	11.5	14.5	0.0070
	2	0.8	0.4	1.4	12.0	15.5	0.0065
3 x 10	1	1.0	0.6	1.4	14.0	17.5	0.0070
	2	1.0	0.6	1.4	14.5	19.0	0.0065
3 x 16	2	1.0	0.8	1.4	16.5	21.5	0.0052
3 x 25	2	1.2	0.8	1.6	20.5	26.0	0.0050
3 x 35	2	1.2	1.0	1.6	22.0	29.0	0.0044
4 x 1.5	1	0.7	0.4	1.2	8.6	11.5	0.011
	2	0.7	0.4	1.2	9.0	12.0	0.010
4 x 2.5	1	0.8	0.4	1.2	10.0	13.0	0.010
	2	0.8	0.4	1.2	11.5	13.5	0.009
4 x 4	1	0.8	0.4	1.4	12.0	14.5	0.0085
	2	0.8	0.4	1.4	12.5	15.0	0.0077
4 x 6	1	0.8	0.6	1.4	12.5	16.0	0.0070
	2	0.8	0.6	1.4	13.0	17.0	0.0065
4 x 10	1	1.0	0.6	1.4	15.5	19.0	0.0070
	2	1.0	0.6	1.4	16.0	20.5	0.0065
4 x 16	2	1.0	0.8	1.4	18.0	23.5	0.0052
4 x 25	2	1.2	1.0	1.6	22.5	28.5	0.0050
4 x 35	2	1.2	1.0	1.6	24.5	32.0	0.0044
5 x 1.5	1	0.7	0.4	1.2	9.4	12.0	0.011
	2	0.7	0.4	1.2	9.8	12.5	0.010
5 x 2.5	1	0.8	0.4	1.2	11.0	14.0	0.010
	2	0.8	0.4	1.2	11.0	14.5	0.009
5 x 4	1	0.8	0.6	1.4	12.5	16.0	0.0085
	2	0.8	0.6	1.4	13.0	17.0	0.0077
5 x 6	1	0.8	0.6	1.4	13.5	17.5	0.0070
	2	0.8	0.6	1.4	14.5	18.5	0.0065
5 x 10	1	1.0	0.6	1.4	17.0	21.0	0.0070
	2	1.0	0.6	1.4	17.5	22.0	0.0065
5 x 16	2	1.0	0.8	1.6	20.5	26.0	0.0052
5 x 25	2	1.2	1.0	1.6	24.5	31.5	0.0050
5 x 35	2	1.2	1.2	1.6	27.0	35.0	0.0044
