Application
Type NM-B (nonmetallic-sheathed cable) may be used for both exposed and concealed work as specified in the 2011 National Electrical Code. NM-B cable is primarily used in residential wiring as branch circuits for outlets, switches, and other loads. NM-B cable may be run in air voids of masonry block or tile walls where such walls are not wet or damp locations.
Temperature rating and voltage rating
90°C dry, 600V
Standard reference
ASTM B3 and B8
UL83 -Thermoplastic Insulated Wires and Cables
UL719- Nonmetallic -Sheathed Cables
National Electrical Code, NFPA 70. 2011 Edition
Construction

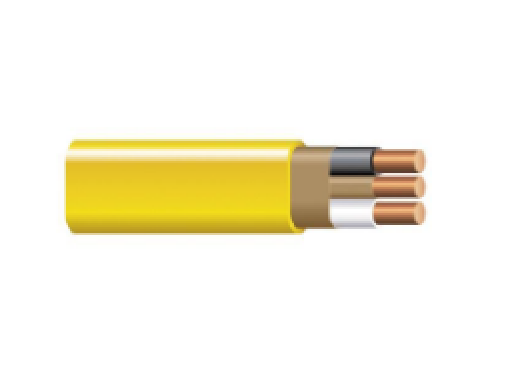

Type NM-B cable is manufactured as 2, 3, or 4 conductor cable, with a bare ground wire.
Conductor: Annealed copper,solid or compressed stranded, sizes 14 AWG up to 2 AWG
Insulation: Polyvinyl chloride (PVC) with nylon jacketed
Color coded: 2 Conductors – Black, White; 3 Conductors – Black, Red, White
Separator: Paper separator
Jacket: PVC; Color coded: White – 14 AWG, Yellow – 12 AWG, Orange – 10 AWG, and Black – 8 AWG and 6 AWG
Package type
Common coil, reel,spool, or can do upon request.
Technical Parameter
Conductor | Ground Wire | Jacket Thickness | Approx. Overall Diameter | Approx. Net Weight | |||||||
Size | Number of Conductors | Number of Strands | Insulation Thickness | Size | Number of Strands | ||||||
AWG | mm | mils | AWG | mm | mils | mm | kg/km | lbs/1000ft | |||
14 | 2 | 1 | 0.48 | 19 | 14 | 1 | 0.76 | 30 | 4.4*9.5 | 98 | 66 |
12 | 2 | 1 | 0.48 | 19 | 12 | 1 | 0.76 | 30 | 4.8*10.9 | 135 | 91 |
10 | 2 | 1 | 0.61 | 24 | 10 | 1 | 0.76 | 30 | 5.6*13.0 | 202 | 136 |
8 | 2 | 7 | 0.89 | 35 | 10 | 1 | 0.76 | 30 | 7.3*16.4 | 299 | 201 |
6 | 2 | 7 | 0.89 | 35 | 10 | 1 | 0.76 | 30 | 8.2*18.2 | 405 | 272 |
14 | 3 | 1 | 0.48 | 19 | 14 | 1 | 0.76 | 30 | 8.3 | 126 | 85 |
12 | 3 | 1 | 0.48 | 19 | 12 | 1 | 0.76 | 30 | 9.2 | 173 | 116 |
10 | 3 | 1 | 0.61 | 24 | 10 | 1 | 0.76 | 30 | 11.2 | 264 | 177 |
8 | 3 | 7 | 0.89 | 35 | 10 | 1 | 0.76 | 30 | 15.3 | 418 | 281 |
6 | 3 | 7 | 0.89 | 35 | 10 | 1 | 0.76 | 30 | 17.5 | 581 | 390 |
4 | 3 | 7 | 1.17 | 46 | 8 | 1 | 0.76 | 30 | 20.4 | 858 | 576 |
2 | 3 | 7 | 1.17 | 46 | 8 | 1 | 0.76 | 30 | 24.0 | 1245 | 836 |
