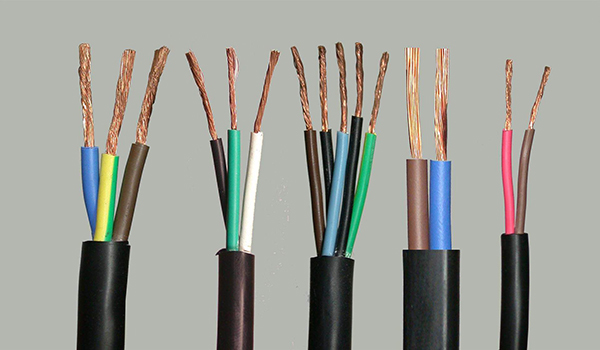

PVC Insulated and Sheathed Flexible Cord (H03V2V2-F & H03V2V2H2-F)
Light Duty 90ºC PVC Insulated and Sheathed Flexible Cord, 600V, 90ºC, Harmonized code H03V2V2-F & H03V2V2H2-F
Application
These cables are suitable for domestic premises, kitchen, office for light service or light portable apparatuses. With their special insulation and sheath compounds, these cables are adapt for apparatus in kitchen and heating and for use in zones with high temperatures (like lighting system apparatuses) without contact with warm parts and radiations.
Standard
BS EN 50525-2-11,BS 6500
Construction
Conductor: Bare copper fine wire, stranded to IEC 60228 Class 5
Insulation: PVC compound, type TI 3
Color core identification and sequence
2- core: blue and brown
3-core: green/yellow, blue and brown
4-core: green/yellow, brown, black, grey ; or green/yellow, blue, brown, black
Assembly: for circular cords,the cores shall be twisted togeter.
1) Filler: A center filler may be used.
2) A tape/separator may be applied around the cores assembly
For flat cords, the two cores shall be laid parallel
Sheath: PVC compound, type TM 3
Color of sheath: Not specified
Technical Characteristics
Rated voltage: 300/300V
Test voltage: 2000V
Flexing bending radius: 15 x Ø
Static bending radius: 4 x Ø
Operating temperature: -5º C to +90º C
Harmonized cable code H03V2V2-F, H03V2V2H2-F
| No. of Cores x Nom. Cross Sectional Area | No. of wires | Wire Dia. | Nom. PVC Insulation Thickness | Nom.PVC Sheath Thickness | Overall Diameter | Min. Insulation Resistance at 90ºC | Maximum Resistance of Conductor at 20ºC | |
| Min. OD | Max. OD | Plain Copper Wires | ||||||
| # x mm² | mm | mm | mm | mm | mm | Mohm.km | Ω/km | |
| 2 x 0.5 | 16 | 0.2 | 0.5 | 0.6 | 4.6 | 5.9 | 0.011 | 39.0 |
| 2 x 0.75 | 24 | 0.2 | 0.5 | 0.6 | 4.9 | 6.3 | 0.010 | 26.0 |
| 3 x 0.5 | 16 | 0.2 | 0.5 | 0.6 | 4.9 | 6.3 | 0.011 | 39.0 |
| 3 x 0.75 | 24 | 0.2 | 0.5 | 0.6 | 5.2 | 6.7 | 0.010 | 26.0 |
| 4 x 0.5 | 16 | 0.2 | 0.5 | 0.6 | 5.4 | 6.9 | 0.011 | 39.0 |
| 4 x 0.75 | 24 | 0.2 | 0.5 | 0.6 | 5.7 | 7.3 | 0.010 | 26.0 |
| 2 x 0.5 | 16 | 0.2 | 0.5 | 0.6 | 3.0 x 4.9 | 3.7 x 5.9 | 0.011 | 39.0 |
| 2 x 0.75 | 24 | 0.2 | 0.5 | 0.6 | 3.2 x 5.2 | 3.8 x 6.3 | 0.010 | 26.0 |
