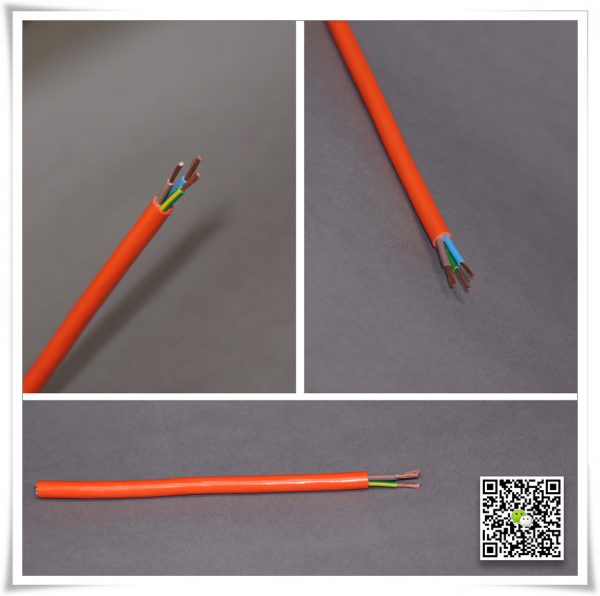

PVC Orange Circular 2C+E & 3C+E (450/750V & 0.6/1kV)
2 & 3 cores + earth, circular, V-90 insulated, 90°C PVC sheathed to AS/NZS 5000, Stranded Copper conductors
Note: Cores smaller than 25mm² are not compacted.
Construction characteristics
Colour Orange
Conductor material Copper
Conductor shape Circular
Insulation V-90
Outer sheath PVC
Type of conductor Stranded copper
| PVC CIRCULAR 2 CORES + EARTH | ||||||
| Cross section [mm²] | Type of conductor | Normal thickness of insulation [mm] | Normal thickness of sheath [mm] | Earth wire section [mm²] | Normal overall diameter [mm] | Approx. weight [kg/100m] |
| 1.5 | stranded copper | 0.6 | 0.7 | 1.5 | 8.4 | 10.6 |
| 2.5 | stranded copper | 0.7 | 1.2 | 2.5 | 9.8 | 15.9 |
| 4 | stranded copper | 0.8 | 1.3 | 2.5 | 11.4 | 21 |
| 6 | stranded copper | 0.8 | 1.3 | 2.5 | 12.4 | 25.7 |
| 10 | stranded copper | 1.0 | 1.8 | 4 | 14 | 43.5 |
| 16 | stranded copper | 1.0 | 1.8 | 6 | 18 | 59.7 |
| PVC CIRCULAR 3 CORES + EARTH | ||||||
| Cross section [mm²] | Type of conductor | Normal thickness of insulation [mm] | Normal thickness of sheath [mm] | Earth wire section [mm²] | Normal overall diameter [mm] | Approx. weight [kg/100m] |
| 1.5 | stranded copper | 0.6 | 1.2 | 1.5 | 9.2 | 13.7 |
| 2.5 | stranded copper | 0.7 | 1.3 | 2.5 | 11.0 | 19.0 |
| 4 | stranded copper | 0.8 | 1.3 | 2.5 | 12.5 | 26.3 |
| 6 | stranded copper | 0.8 | 1.3 | 2.5 | 13.5 | 33.2 |
| 10 | stranded copper | 1.0 | 1.8 | 4 | 17.5 | 56.1 |
| 16 | stranded copper | 1.0 | 1.8 | 6 | 19.6 | 78.2 |
