Application
This product’s typical uses include diesel locomotive and car equipment, motor and generator leads, battery leads, shipyards, telecommunications power, heavy earth moving equipment and other permanent heavy duty flexing power applications in wet and dry environments.
Temperature rating and voltage rating
RHW-2: 90°C wet and dry, 2000V
RHH: 90°C dry, 2000V
Standards
ASTM B-33
ASTM B-172
ICEA S-95-658/NEMA WC-70
UL 44 – Thermoset-Insulated Wire;UL/cUL listed, File No. E498728

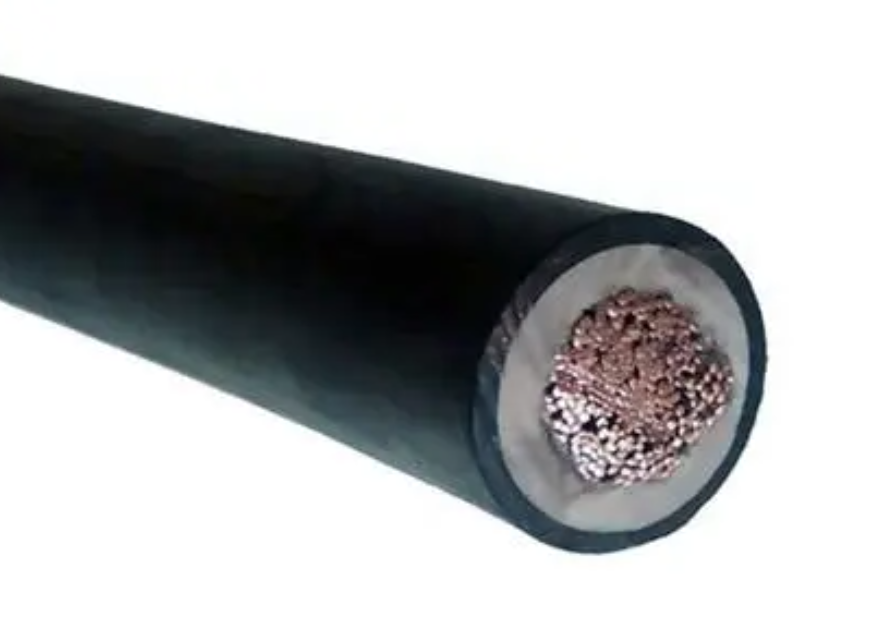

Construction
Conductor: Flexible annealed copper or tinned copper with a separator layer
Insulation: EPR
Jacket: Flame retardant, oil and gas resistant CPE
Technical Parameter
Size | Sranding AWG/# Strands |
EPR Insulation Thickness | CPE Jacket Thickness | Approx. Overall Diameter | Approx. Net Weight | ||||
AWG or MCM | mm | mils | mm | mils | mm | inch | kg/km | lbs/1000ft | |
8 | 37 | 1.40 | 55 | 0.76 | 30 | 8.4 | 0.33 | 122 | 82 |
6 | 61 | 1.40 | 55 | 0.76 | 30 | 10.2 | 0.40 | 186 | 125 |
4 | 105 | 1.40 | 55 | 0.76 | 30 | 11.4 | 0.450 | 290 | 195 |
2 | 168 | 1.40 | 55 | 0.76 | 30 | 13.6 | 0.535 | 442 | 297 |
1 | 225 | 1.65 | 65 | 1.14 | 45 | 15.7 | 0.618 | 595 | 400 |
1/0 | 273 | 1.65 | 65 | 1.14 | 45 | 16.4 | 0.646 | 720 | 484 |
2/0 | 323 | 1.65 | 65 | 1.14 | 45 | 18.0 | 0.709 | 837 | 562 |
3/0 | 448 | 1.65 | 65 | 1.14 | 45 | 20.5 | 0.807 | 1111 | 746 |
4/0 | 532 | 1.65 | 65 | 1.14 | 45 | 21.4 | 0.843 | 1331 | 894 |
262 | 646 | 1.91 | 75 | 1.65 | 65 | 24.8 | 0.976 | 1577 | 1059 |
313 | 777 | 1.91 | 75 | 1.65 | 65 | 26.6 | 1.047 | 1894 | 1272 |
373 | 925 | 1.91 | 75 | 1.65 | 65 | 27.6 | 1.087 | 2212 | 1486 |
444 | 1110 | 1.91 | 75 | 1.65 | 65 | 29.5 | 1.161 | 2603 | 1749 |
535 | 1332 | 2.29 | 90 | 1.65 | 65 | 31.8 | 1.252 | 3077 | 2067 |
646 | 1591 | 2.29 | 90 | 1.65 | 65 | 35.1 | 1.382 | 3668 | 2464 |
777 | 1924 | 2.29 | 90 | 1.65 | 65 | 39.0 | 1.535 | 4337 | 2914 |
929 | 2310 | 2.29 | 90 | 1.65 | 65 | 40.8 | 1.606 | 5071 | 3407 |
