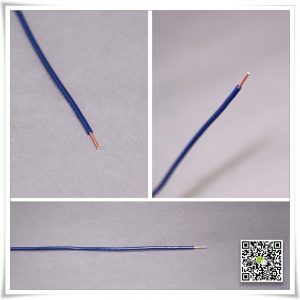

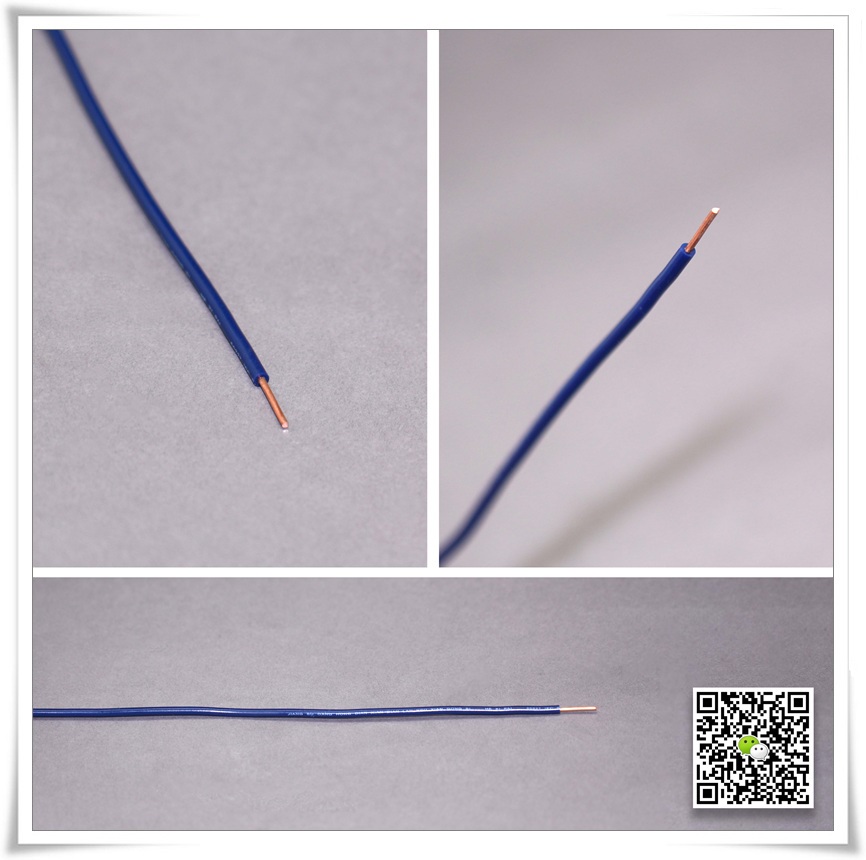

Type 60227 IEC 01
FEATURES
450/750V
70℃
IEC 60227-3
APPLICATION
For fixed wiring
CONSTRUCTION
Conductor
IEC 60228
- Class 1 for solid conductors
- Class 2 for stranded conductors
Insulation
PVC compound of Type PVC/C
General data for type 60227 IEC 01
| 1 | 2 | 3 | 4 | 5 | 6 |
| Nominal cross-
Sectional area of conductor |
Class of
Conductor |
Thickness of
Insulation |
Mean overall diameter | Minimum insulation
resistance at 70℃ |
|
| IEC 60228 | Specified value | Lower limit | Upper limit | ||
| mm2 | mm | mm | mm | MΩ·km | |
| 1.5 | 1 | 0.7 | 2.6 | 3.2 | 0.011 |
| 1.5 | 2 | 0.7 | 2.7 | 3.3 | 0.010 |
| 2.5 | 1 | 0.8 | 3.2 | 3.9 | 0.010 |
| 2.5 | 2 | 0.8 | 3.3 | 4.0 | 0.009 |
| 4 | 1 | 0.8 | 3.6 | 4.4 | 0.0085 |
| 4 | 2 | 0.8 | 3.8 | 4.6 | 0.0077 |
| 6 | 1 | 0.8 | 4.1 | 5.0 | 0.0070 |
| 6 | 2 | 0.8 | 4.3 | 5.2 | 0.0065 |
| 10 | 1 | 1.0 | 5.3 | 6.4 | 0.0070 |
| 10 | 2 | 1.0 | 5.6 | 6.7 | 0.0065 |
| 16 | 2 | 1.0 | 6.4 | 7.8 | 0.0050 |
| 25 | 2 | 1.2 | 8.1 | 9.7 | 0.0050 |
| 35 | 2 | 1.2 | 9.0 | 10.9 | 0.0043 |
| 50 | 2 | 1.4 | 10.6 | 12.8 | 0.0043 |
| 70 | 2 | 1.4 | 12.1 | 14.6 | 0.0035 |
| 95 | 2 | 1.6 | 14.1 | 17.1 | 0.0035 |
| 120 | 2 | 1.6 | 15.6 | 18.8 | 0.0032 |
| 150 | 2 | 1.8 | 17.3 | 20.9 | 0.0032 |
| 185 | 2 | 2.0 | 19.3 | 23.3 | 0.0032 |
| 240 | 2 | 2.2 | 22.0 | 26.6 | 0.0032 |
| 300 | 2 | 2.4 | 24.5 | 29.6 | 0.0030 |
| 400 | 2 | 2.6 | 27.5 | 33.2 | 0.0028 |
