Application
For use in internal wiring of electrical equipment, control panels, appliances, and grounding for use on industrial plan floor.
Temperature rating and voltage rating
90°C dry, 60°C wet; 600V
Standards
UL1063 – Standard for Machine-Tool Wires and Cables
UL listed, File No. E507979

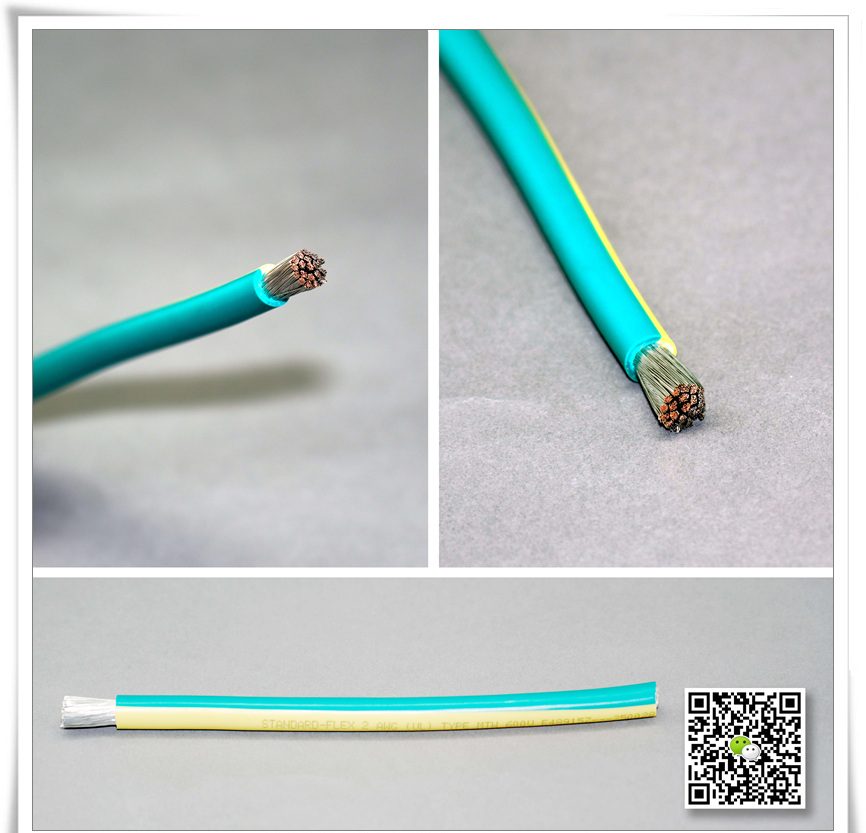

Construction
Conductor: Flexible stranded copper , sizes 22 AWG up to 1000 kcmil
Insulation: Extruded Polyvinyl Chloride (PVC).
Package type: Common coil, reel, gift box, or can do upon request.
Technical Date for stranded copper conductors
| Size | No. of Strands | PVC Insulation Thickness | Approx. Overall Diameter | Approx. Net Weight | |||
| AWG or kcmil | mm | mils | mm | inch | kg/km | lbs/1000ft | |
| 22 | 7 | 0.76 | 30 | 2.5 | 0.098 | 8.2 | 5.5 |
| 20 | 10 | 0.76 | 30 | 2.7 | 0.106 | 10.7 | 7.2 |
| 18 | 16 | 0.76 | 30 | 2.9 | 0.114 | 13.8 | 9.3 |
| 16 | 26 | 0.76 | 30 | 3.2 | 0.126 | 19 | 13 |
| 14 | 41 | 0.76 | 30 | 3.6 | 0.142 | 28 | 19 |
| 12 | 65 | 0.76 | 30 | 4.1 | 0.161 | 40 | 27 |
| 10 | 105 | 0.76 | 30 | 4.6 | 0.181 | 59 | 40 |
| 8 | 168 | 1.14 | 45 | 6.3 | 0.248 | 100 | 67 |
| 6 | 266 | 1.52 | 60 | 8.1 | 0.319 | 161 | 108 |
| 4 | 420 | 1.52 | 60 | 9.3 | 0.366 | 238 | 160 |
| 2 | 665 | 1.52 | 60 | 11.2 | 0.441 | 359 | 241 |
| 1/0 | 1045 | 2.03 | 80 | 14.3 | 0.563 | 571 | 384 |
| 250 | 2479 | 2.41 | 95 | 21.2 | 0.835 | 1294 | 869 |
| 350 | 3431 | 2.41 | 95 | 24.1 | 0.949 | 1746 | 1173 |
| 500 | 4941 | 2.41 | 95 | 26.9 | 1.059 | 2443 | 1641 |
