Application
General purpose building wire for services feeders and branch circuits. Also used for wiring of machine tools (stranded), appliances, and control circuits
Temperature rating and voltage rating: 75°C wet or dry, 600V.
Standards
UL83 for Thermoplastic Insulated Wires and Cables
UL758 for Appliance Wiring Materials (AWM)
UL1063 for Machine Tool Wire (MTW) (stranded conductors only)
UL/cUL listed, File No. E349441

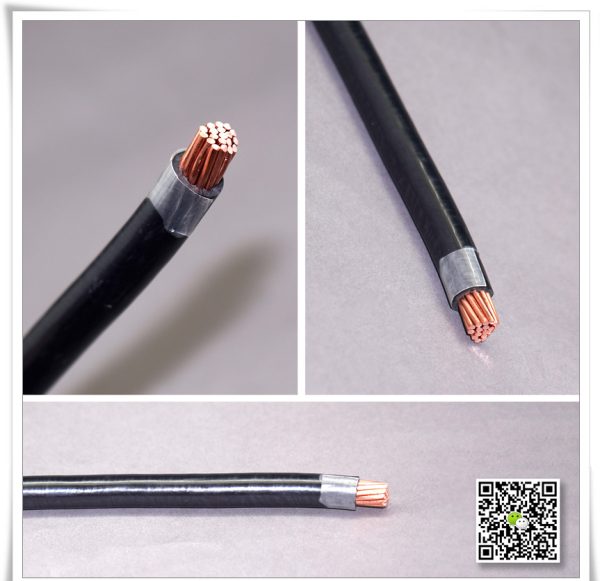

Construction
Conductor
Annealed copper, solid or stranded, sizes 14 AWG up to 1000 MCM
Insulation
Flame retardant Polyvinyl Chloride (PVC)
Available colors are red, white, blue, green, black, etc.
Jacket:Tough polyamide (Nylon)
Package type :Common coil, reel, gift box, or can do upon request.
Technical Parameter
Size | No. of Strands | PVC Insulation Thickness | Nylon Jacket Thickness | Approx. Overall Diameter | Approx. Net Weight | ||||
AWG or MCM | mm | mils | mm | mils | mm | inch | kg/km | lbs/1000ft | |
14 | solid | 0.38 | 15 | 0.10 | 4 | 2.7 | 0.106 | 23 | 15 |
12 | solid | 0.38 | 15 | 0.10 | 4 | 3.1 | 0.122 | 35 | 24 |
10 | solid | 0.51 | 20 | 0.10 | 4 | 3.9 | 0.154 | 55 | 37 |
14 | 7 | 0.38 | 15 | 0.10 | 4 | 2.9 | 0.113 | 24 | 16 |
12 | 7 | 0.38 | 15 | 0.10 | 4 | 3.4 | 0.132 | 37 | 25 |
10 | 7 | 0.51 | 20 | 0.10 | 4 | 4.2 | 0.166 | 59 | 40 |
8 | 7 | 0.76 | 30 | 0.13 | 5 | 5.5 | 0.217 | 93 | 62 |
6 | 7 | 0.76 | 30 | 0.13 | 5 | 6.5 | 0.256 | 142 | 95 |
4 | 7 | 1.02 | 40 | 0.15 | 6 | 8.3 | 0.327 | 226 | 152 |
3 | 7 | 1.02 | 40 | 0.15 | 6 | 9.0 | 0.354 | 279 | 187 |
2 | 7 | 1.02 | 40 | 0.15 | 6 | 9.8 | 0.386 | 346 | 232 |
14 | 19 | 0.38 | 15 | 0.10 | 4 | 2.9 | 0.113 | 24 | 16 |
12 | 19 | 0.38 | 15 | 0.10 | 4 | 3.4 | 0.132 | 37 | 25 |
10 | 19 | 0.51 | 20 | 0.10 | 4 | 4.2 | 0.166 | 58 | 39 |
8 | 19 | 0.76 | 30 | 0.13 | 5 | 5.5 | 0.216 | 94 | 63 |
6 | 19 | 0.76 | 30 | 0.13 | 5 | 6.5 | 0.256 | 144 | 97 |
4 | 19 | 1.02 | 40 | 0.15 | 6 | 8.3 | 0.327 | 228 | 153 |
3 | 19 | 1.02 | 40 | 0.15 | 6 | 9.0 | 0.354 | 284 | 191 |
2 | 19 | 1.02 | 40 | 0.15 | 6 | 9.8 | 0.386 | 351 | 236 |
1 | 19 | 1.27 | 50 | 0.18 | 7 | 11.2 | 0.441 | 448 | 301 |
1/0 | 19 | 1.27 | 50 | 0.18 | 7 | 12.2 | 0.480 | 562 | 378 |
2/0 | 19 | 1.27 | 50 | 0.18 | 7 | 13.3 | 0.524 | 697 | 468 |
3/0 | 19 | 1.27 | 50 | 0.18 | 7 | 14.6 | 0.575 | 867 | 582 |
4/0 | 19 | 1.27 | 50 | 0.18 | 7 | 16.0 | 0.630 | 1086 | 730 |
250 | 37 | 1.52 | 60 | 0.20 | 8 | 17.8 | 0.701 | 1278 | 859 |
300 | 37 | 1.52 | 60 | 0.20 | 8 | 19.1 | 0.752 | 1522 | 1022 |
350 | 37 | 1.52 | 60 | 0.20 | 8 | 20.4 | 0.803 | 1773 | 1191 |
400 | 37 | 1.52 | 60 | 0.20 | 8 | 21.5 | 0.846 | 2014 | 1353 |
450 | 37 | 1.52 | 60 | 0.2 | 8 | 22.6 | 0.890 | 2255 | 1515 |
500 | 37 | 1.52 | 60 | 0.20 | 8 | 23.6 | 0.929 | 2493 | 1675 |
600 | 61 | 1.78 | 70 | 0.23 | 9 | 26.2 | 1.031 | 2997 | 2013 |
750 | 61 | 1.78 | 70 | 0.23 | 9 | 28.8 | 1.134 | 3697 | 2484 |
1000 | 61 | 1.78 | 70 | 0.23 | 9 | 32.6 | 1.283 | 4883 | 3280 |
