Description

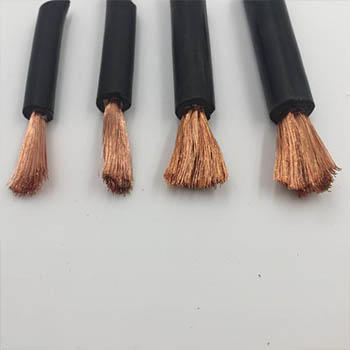

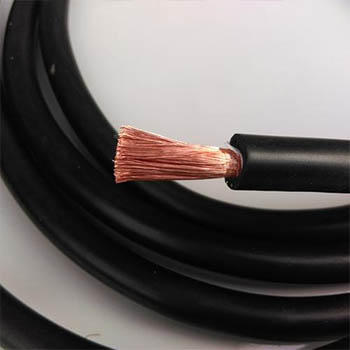

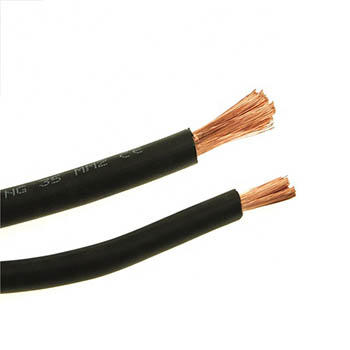

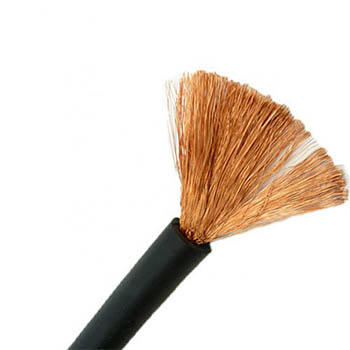

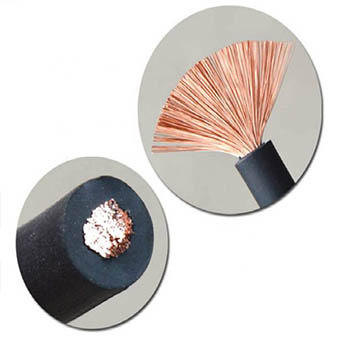

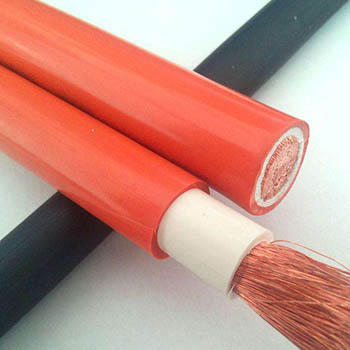

Construction: Class 5 flexible plain copper conductor, rubber insulated cable (or PVC insulated and PVC sheathed cable, PVC insulated is for some special countries only)
| Description |
Core Numbers |
Conductors Range |
| Natural rubber sheath for welding cable |
1 |
10~240mm2 |
| Horoprene rubber or other syntheitic sheath welding cable |
1 |
10~240mm2 |
Applications
Secondary voltage resistance welding leads in heavy duty or mining applications
Power supply applications not exceeding 600 volt AC
Manufacturing Standards
IEC 60245 and Chinese National Standards GB5013
We can produce above cables according to popular international standards such as ASTM, BS, DIN, NF &AS/NZ also.
Main Technical Data
Welding cables to IEC 60245 Standard
| Nominal section area(mm2) |
No./diameter of stranding(mm) |
Nominal sheath thickness (mm) |
Overall diameter(mm) |
Max. conductor resistance at 20℃(Ω/km) |
| Min. |
Max. |
Without tinned |
With tinned |
| 10 |
322/0.20 |
1.8 |
7.5 |
9.7 |
1.91 |
1.95 |
| 16 |
513/0.20 |
2.0 |
9.2 |
11.5 |
1.16 |
1.19 |
| 25 |
798/0.20 |
2.0 |
10.5 |
13.0 |
0.758 |
0.780 |
| 35 |
1121/0.20 |
2.0 |
11.5 |
14.5 |
0.536 |
0.552 |
| 50 |
1596/0.20 |
2.2 |
13.5 |
17.0 |
0.379 |
0.390 |
| 70 |
2214/0.20 |
2.4 |
15.0 |
19.5 |
0.268 |
0.276 |
| 95 |
2297/0.20 |
2.6 |
17.0 |
22.0 |
0.198 |
0.204 |
| 120 |
1702/0.30 |
2.8 |
19.0 |
24.0 |
0.161 |
0.164 |
| 150 |
2135/0.30 |
3.0 |
21.0 |
27.0 |
0.129 |
0.132 |
| 185 |
1443/0.40 |
3.2 |
22.0 |
29.0 |
0.106 |
0.108 |
| 240 |
1908/0.40 |
3.8 |
25.0 |
35.0 |
0.0801 |
0.0817 |
