Application
Type XHHW-2 conductors are used for power distribution, also primarily used in conduit or recognized raceways
for service’s, feeders and branch circuit wiring, as specified in the National Electrical Code.
Temperature rating and voltage rating
XHHW: 90°C dry,75°C wet, 600V
XHHW-2: 90°C dry and wet, 600V
RW90: 90°C dry and wet, 1000V
Standards
ASTM- All Applicable Standards
UL 44 – Thermoset-Insulated Wire；UL/cUL listed, File No. E498728
National Electrical Code, NFPA 70, 2014 Edition
Construction

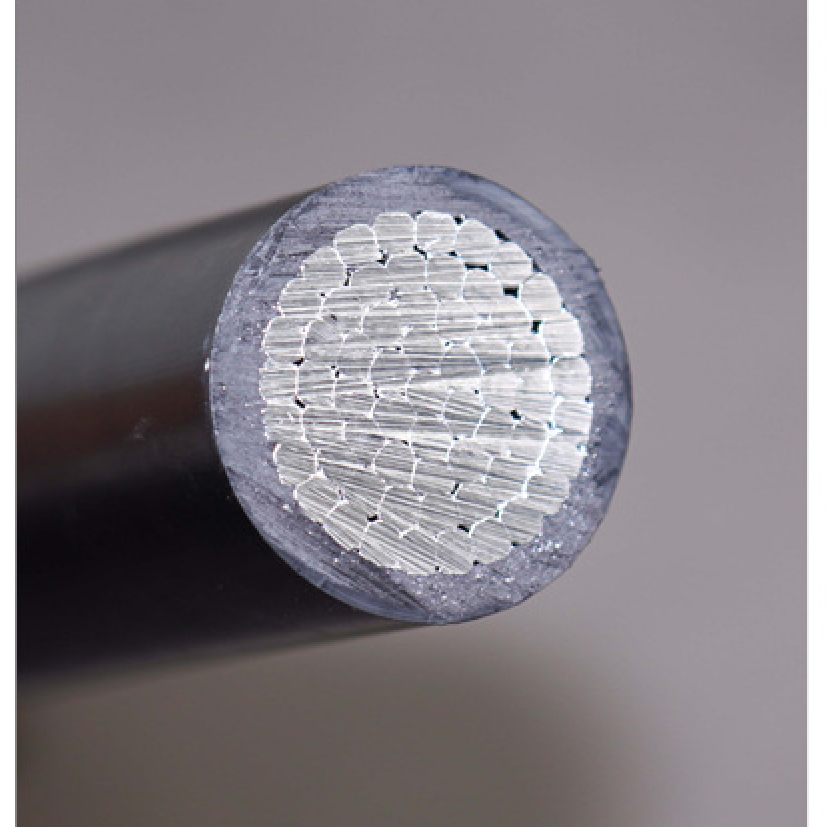

Conductor: AA-8000 series aluminum alloy, sizes 8 AWG up to 1000 MCM

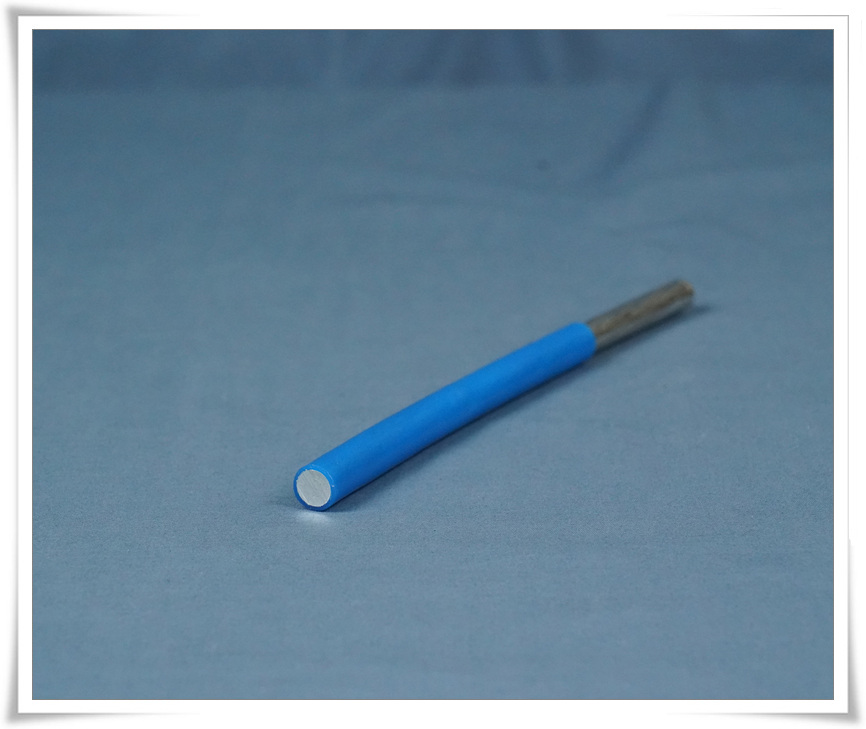

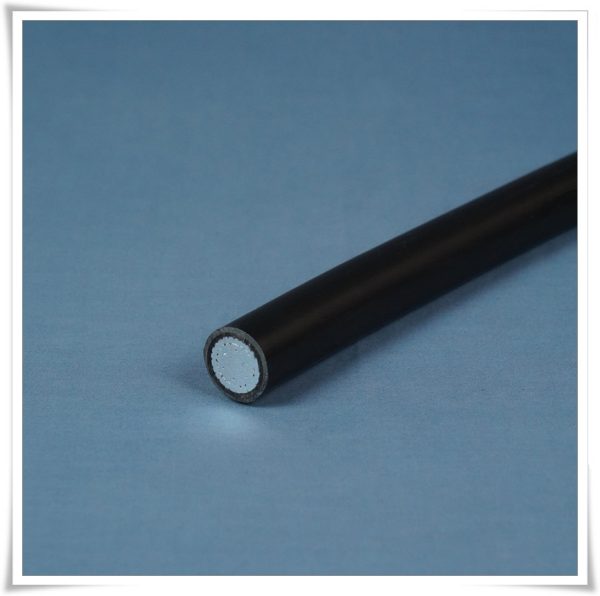

Insulation: Thermoset crosslinked polyethylene. Available colors are red, white, blue, green, black, etc.
Technical Parameter
| Size | No. of Strands | XLPE Insulation Thickness | Approx. Overall Diameter | Approx. Net Weight | |||
| AWG or MCM | mm | mils | mm | inch | kg/km | lbs/1000ft | |
| 8 | 7 | 1.14 | 45 | 5.8 | 0.228 | 40 | 27 |
| 6 | 7 | 1.14 | 45 | 6.7 | 0.264 | 56 | 38 |
| 4 | 7 | 1.14 | 45 | 7.8 | 0.307 | 82 | 55 |
| 2 | 7 | 1.14 | 45 | 9.2 | 0.362 | 121 | 81 |
| 1 | 18 | 1.40 | 55 | 10.5 | 0.413 | 156 | 105 |
| 1/0 | 18 | 1.40 | 55 | 11.2 | 0.441 | 186 | 125 |
| 2/0 | 18 | 1.40 | 55 | 12.5 | 0.492 | 323 | 217 |
| 3/0 | 18 | 1.40 | 55 | 13.7 | 0.539 | 287 | 193 |
| 4/0 | 18 | 1.40 | 55 | 15.0 | 0.591 | 352 | 236 |
| 250 | 35 | 1.65 | 65 | 16.6 | 0.654 | 421 | 283 |
| 300 | 35 | 1.65 | 65 | 17.9 | 0.705 | 498 | 335 |
| 350 | 35 | 1.65 | 65 | 19.1 | 0.752 | 569 | 382 |
| 400 | 35 | 1.65 | 65 | 20.2 | 0.795 | 650 | 437 |
| 500 | 35 | 1.65 | 65 | 22.1 | 0.870 | 795 | 534 |
| 600 | 58 | 2.03 | 80 | 24.9 | 0.980 | 974 | 654 |
| 700 | 58 | 2.03 | 80 | 26.5 | 1.043 | 1124 | 755 |
| 750 | 58 | 2.03 | 80 | 27.3 | 1.075 | 1193 | 801 |
| 900 | 58 | 2.03 | 80 | 29.6 | 1.165 | 1411 | 948 |
| 1000 | 58 | 2.03 | 80 | 31.1 | 1.224 | 1565 | 1051 |
