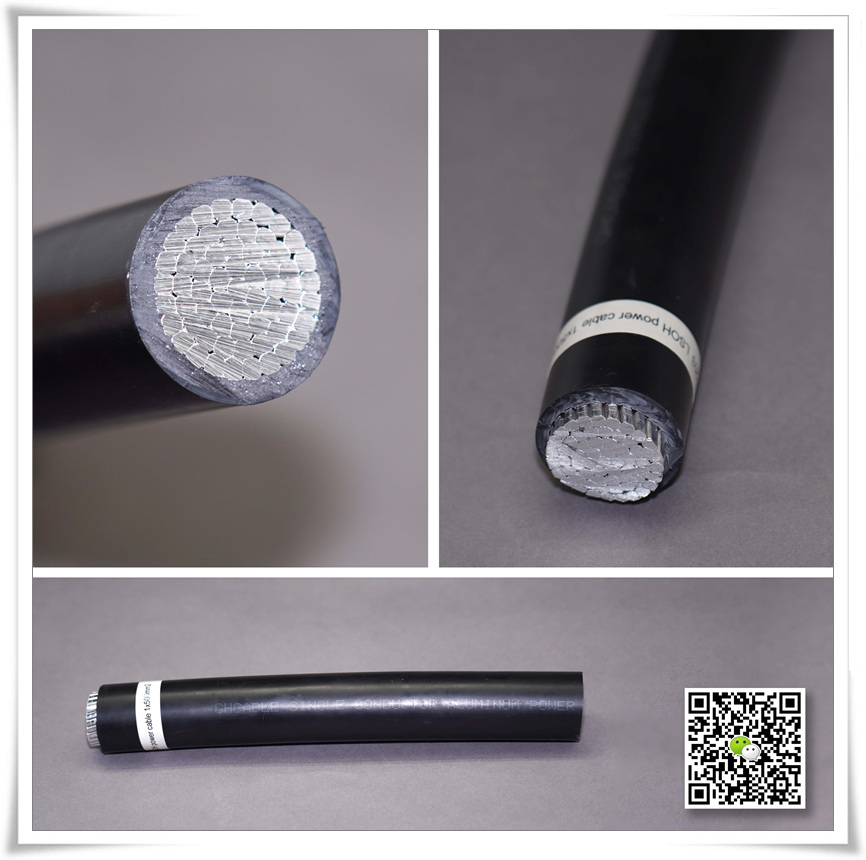

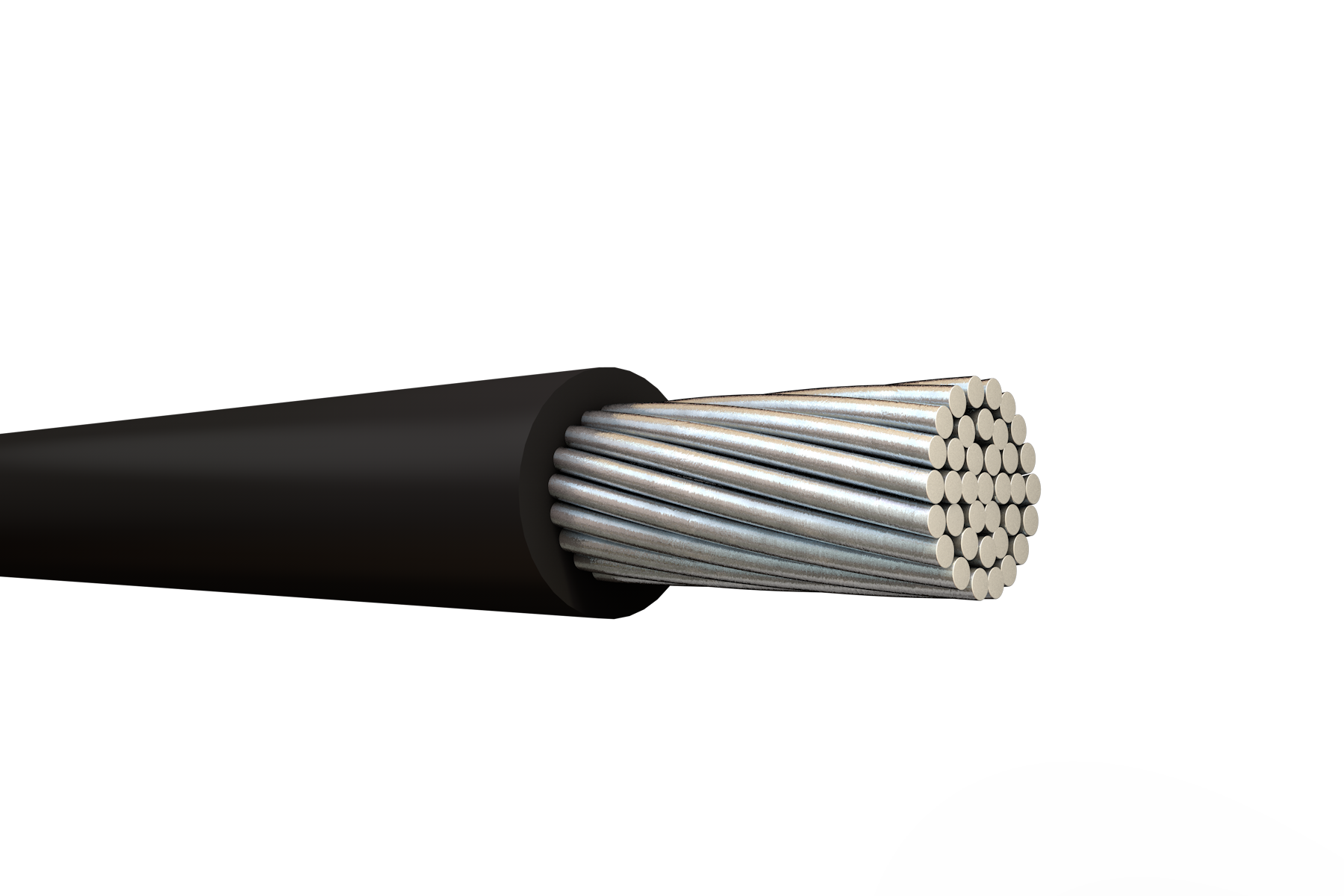

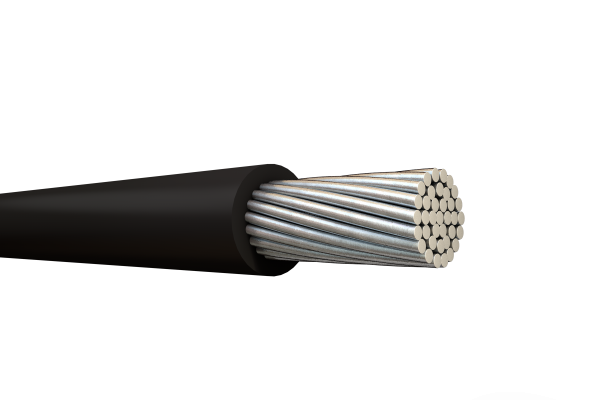

Aerial Insulated Cable, Aluminum Covered Line Wire, 600V, 90C
Application
The covered line wire is used primarily for overhead and distribution lines.
Standards Reference
• ASTM B-230 Aluminum Wire, 1350-H19 for Electrical Purposes
• ASTM B-231 Aluminum Conductors, Concentric Lay-Stranded
• ASTM B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR)
• ASTM B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors
• ASTM B-498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR)
• Covered Line conductors meet all applicable requirements of ICEA S-70-547
Construction
Conductor: Aluminum alloy 1350-H19, 6201-T81, or ACSR
Insulation: LDPE, HDPE or XLPE
Technical Parameter
| Code word | Size | Number of Wires | Insulation Thickness | Diameter | Rated Strength | Approx. Weight (kg/km) | Ampacity | Standard Package | |||||
| Bare Conductor | Insulation O.D. | AL or Alloy | Total | Coils | Reels | ||||||||
| AWG or Kcmil | mm | mm | kg | LDPE | HDPE | XLPE | A | M | M | ||||
| AAC | |||||||||||||
| Plum | 6 | 7 | 0.76 | 4.7 | 6.2 | 255 | 37 | 51 | 51 | 51 | 100 | 1000 | 3000 |
| Apricot | 4 | 7 | 0.76 | 5.7 | 7.2 | 400 | 58 | 76 | 76 | 76 | 135 | 500 | 2000 |
| Peach | 2 | 7 | 1.14 | 7.4 | 9.7 | 612 | 93 | 126 | 128 | 128 | 180 | 500 | 2000 |
| Nectarine | 1 | 7 | 1.14 | 8.3 | 11.5 | 789 | 117 | 167 | 170 | 170 | 210 | 305 | 1500 |
| Quince | 1/0 | 7 | 1.52 | 9.3 | 12.4 | 903 | 147 | 204 | 206 | 206 | 240 | 305 | 1000 |
| Haw | 1/0 | 19 | 1.52 | 9.5 | 12.5 | 980 | 147 | 204 | 210 | 207 | 240 | 305 | 1000 |
| Orange | 2/0 | 7 | 1.52 | 10.5 | 13.6 | 1139 | 186 | 258 | 261 | 261 | 280 | – | 1000 |
| Ironwood | 2/0 | 19 | 1.52 | 10.6 | 13.7 | 1211 | 186 | 250 | 253 | 253 | 280 | – | 1000 |
| Fig | 3/0 | 7 | 1.52 | 11.8 | 14.8 | 1377 | 234 | 316 | 319 | 319 | 320 | – | 1000 |
| Lemon | 3/0 | 19 | 1.52 | 11.9 | 15.0 | 1501 | 234 | 307 | 310 | 310 | 320 | – | 1000 |
| Olive | 4/0 | 7 | 1.52 | 13.3 | 16.3 | 1728 | 296 | 378 | 382 | 382 | 370 | – | 1000 |
| Pomegranate | 4/0 | 19 | 1.52 | 13.4 | 16.5 | 1823 | 296 | 379 | 383 | 383 | 370 | – | 1000 |
| Sassafras | 250 | 19 | 1.52 | 14.6 | 17.6 | 2043 | 349 | 440 | 444 | 444 | 420 | – | 500 |
| Mulberry | 266.8 | 19 | 1.52 | 14.6 | 17.7 | 2182 | 372 | 464 | 468 | 468 | 430 | – | 500 |
| Basswood | 300 | 19 | 1.52 | 16.0 | 19.0 | 2404 | 420 | 521 | 525 | 525 | 478 | – | 500 |
| Anona | 336.4 | 19 | 1.52 | 16.9 | 20.0 | 2697 | 470 | 578 | 583 | 583 | 495 | – | 500 |
| Chinquapin | 350 | 19 | 1.52 | 17.2 | 20.3 | 2790 | 488 | 599 | 604 | 604 | 525 | – | 500 |
| Molles | 397.5 | 19 | 2.03 | 18.4 | 22.5 | 3123 | 555 | 707 | 714 | 714 | 550 | – | 500 |
| Sumac | 450 | 19 | 2.03 | 19.6 | 23.7 | 3719 | 628 | 792 | 799 | 799 | 600 | – | 1000 |
| Huckleberry | 477 | 37 | 2.03 | 20.2 | 24.3 | 3810 | 665 | 835 | 842 | 842 | 610 | – | 1000 |
| AAAC | |||||||||||||
| Maple | 6 | 7 | 0.76 | 5.0 | 6.6 | 503 | 42 | 60 | 61 | 61 | 78 | 823 | 2500 |
| Hornbeam | 4 | 7 | 0.76 | 6.4 | 7.9 | 798 | 68 | 89 | 91 | 92 | 145 | 500 | 1500 |
| Linden | 2 | 7 | 1.14 | 8.0 | 10.3 | 1270 | 107 | 147 | 147 | 149 | 190 | 305 | 2000 |
| Oilnut | 1/0 | 7 | 1.52 | 8.8 | 11.9 | 2023 | 171 | 238 | 247 | 247 | 250 | 305 | 1000 |
| Waterash | 2/0 | 7 | 1.52 | 11.4 | 14.4 | 2445 | 216 | 292 | 302 | 302 | 290 | – | 1000 |
| Shellbark | 3/0 | 7 | 1.52 | 12.8 | 15.8 | 3080 | 272 | 359 | 371 | 371 | 335 | – | 1000 |
| Planetree | 4/0 | 7 | 1.52 | 14.3 | 17.3 | 3883 | 343 | 443 | 457 | 457 | 385 | – | 914 |
| ACSR | |||||||||||||
| Walnut | 6 | 6/1 | 0.76 | 5.0 | 6.6 | 540 | 36 | 70 | 71 | 71 | 105 | 823 | 2500 |
| Butternut | 4 | 6/1 | 0.76 | 6.4 | 7.9 | 844 | 58 | 107 | 107 | 109 | 135 | 500 | 1889 |
| Hickory | 4 | 7/1 | 0.76 | 6.5 | 8.1 | 1070 | 58 | 121 | 122 | 124 | 135 | 500 | 1828 |
| Pignut | 2 | 6/1 | 1.14 | 8.0 | 10.3 | 1293 | 92 | 176 | 177 | 179 | 180 | 366 | 2000 |
| Beech | 2 | 7/1 | 1.41 | 8.4 | 10.6 | 1651 | 92 | 199 | 199 | 202 | 180 | 335 | 2000 |
| Chestnut | 1 | 6/1 | 1.14 | 9.0 | 11.3 | 1610 | 116 | 217 | 219 | 220 | 210 | 305 | 1500 |
| Almond | 1/0 | 6/1 | 1.52 | 10.1 | 13.2 | 1987 | 147 | 283 | 284 | 287 | 235 | 305 | 1000 |
| Pecan | 2/0 | 6/1 | 1.52 | 11.4 | 14.4 | 2404 | 185 | 348 | 350 | 350 | 290 | – | 1000 |
| Filbert | 3/0 | 6/1 | 1.52 | 12.8 | 15.8 | 3003 | 233 | 430 | 433 | 438 | 305 | – | 1000 |
| Buckeye | 4/0 | 6/1 | 1.52 | 14.3 | 17.3 | 3787 | 294 | 531 | 536 | 540 | 345 | – | 914 |
| Hackberry | 266.8 | 18/1 | 1.52 | 15.5 | 18.5 | 3121 | 373 | 525 | 528 | 534 | 356 | – | 500 |
