Triplex Service Drop Cable

Categories: ,

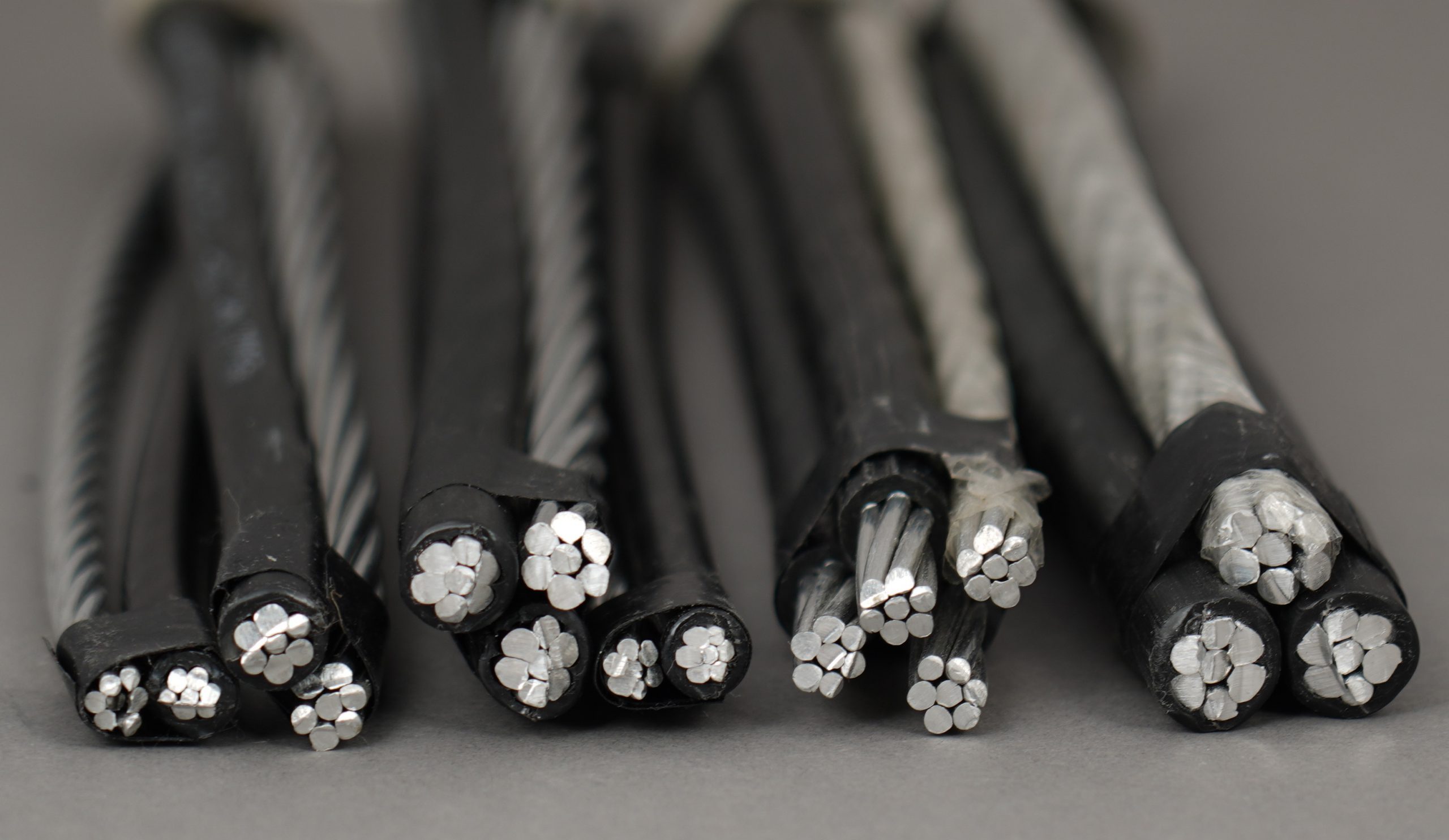

Triplex Service Drop Cable, 600V, 90C

Application

This triplex cable is suited for use as drop cable from a pole mounted transformer to the service entrance of a

structure, or as secondary distribution between poles.

Construction

Two insulated phase conductors twisted around a bare aluminum, aluminum alloy or ACSR neutral conductor

Conductors: Aluminum 1350-H19 wire

Insulation: Black thermoset cross-linked polyethylene (XLPE)

Neutral: Bare aluminum, aluminum alloy or ACSR

Sandards Reference

  • ASTM B-230: Aluminum 1350-H19 wire for electrical purposes
  • ASTM B-231: Concentric lay stranded aluminum 1350 conductors
  • ASTM B-232: Concentric lay stranded aluminum conductors coated-steel reinforced
  • ICEA S-76-474: Neutral supported power cable assemblies with weather resistant extruded insulation rated at 600V
Code word Phase Conductors Bare Neutral Messenger Nominal Weight Ampacity Standard Package
Size & Number of Wires Insulation Thickness Nominal Diameter Size & Number of Wires Rated Strength kg/km Coils Reels
Conductor OD Insulation O.D. XLPE AL or Alloy Total
mm mm mm kg A m m
AAC Neutral Messenger
Halotis 6-1 1.14 4.1 6.4 6-7 255 42 110 152 78 305 762
Pike 6-7 0.76 4.7 6.2 6-7 255 31 112 143 78 305 762
Patella 6-7 1.14 4.7 7 6-7 255 48 112 159 78 305 762
Albus 6-7 1.52 4.7 7.7 6-7 255 64 132 198 78 305 762
Fusus 4-1 1.14 5.2 7.5 4-7 400 52 177 229 103 152 518
Oyster 4-7 1.14 5.9 8.2 4-7 400 60 177 237 103 152 457
Argo 4-7 1.52 5.9 8.9 4-7 400 80 177 258 103 152 457
Clam 2-7 1.14 7.4 9.7 2-7 612 76 281 359 136 152 549
Thia 2-7 1.52 7.4 10.5 2-7 612 100 281 383 136 152 549
Mussel 2-7 1.14 7.4 9.7 2-7 612 76 281 359 136 152 549
Pyrula 1-7 1.52 8.3 11.4 1-7 744 113 356 467 158 152 457
Hyas 1-19 1.52 8.4 11.5 1-7 744 115 356 469 158 152 457
Murex 1/0-7 1.52 9.4 12.4 1/0-7 903 128 385 513 182 152 366
Purpura 1/0-19 1.52 9.5 12.5 1/0-7 903 130 385 515 182 152 366
Nasa 2/0-7 1.52 10.5 13.6 2/0-7 1139 146 566 710 210 – 457
Trophon 2/0-19 1.52 10.6 13.7 2/0-7 1139 147 566 713 210 – 457
Quahog 3/0-7 2.03 11.8 15.9 3/0-7 1379 214 713 926 242 – 396
Ione 3/0-19 2.03 11.9 16.0 3/0-7 1379 217 713 929 242 – 396
Melita 3/0-19 1.52 11.9 15 3/0-19 1501 168 713 881 242 – 396
Coquina 4/0-7 1.52 13.3 16.3 4/0-7 1737 191 899 1089 279 – 305
Tusk 4/0-7 2.03 13.3 17.3 4/0-7 1737 243 899 1141 279 – 305
Apus 4/0-19 2.03 13.4 17.5 4/0-7 1737 246 899 1144 279 – 305
Portunus 4/0-19 1.52 13.4 16.5 4/0-19 1823 194 899 1091 279 – 305
Chiton 266.8-19 2.03 14.9 18.9 266.8-19 2254 277 1133 1409 310 – 305
Nannynose 336.4-19 2.03 16.9 21 336.4-19 2790 321 1427 1749 330 — 305
6201 Alloy Neutral Messenger
Homarus 6-1 1.14 4.1 6.4 6-7 499 42 118 159 78 305 762
Minex 6-1 1.14 4.1 13.3 6-7 499 42 118 159 78 305 762
Cabera 6-7 1.14 4.7 6.9 6-7 499 48 118 165 78 305 671
Hippa 6-7 1.14 4.7 6.9 6-7 499 48 118 165 78 305 671
Artemia 4-1 1.14 5.2 7.5 6-7 499 52 162 214 103 305 518
Maira 4-7 1.14 5.9 8.2 6-7 499 60 188 247 103 305 518
Crab 4-7 1.14 5.9 8.2 6-7 499 60 162 222 103 305 518
Luidia 4-1 1.14 5.2 7.5 6-7 499 52 162 214 103 152 518
Prawn 4-1 1.14 5.2 7.5 4-7 798 52 188 240 103 152 518
Metalia 4-7 1.14 5.9 8.2 4-7 798 60 188 247 103 152 457
Barnacles 4-7 1.14 5.9 8.2 4-7 798 60 188 247 103 152 457
Solaster 2-7 1.14 7.4 9.7 4-7 798 76 258 333 136 152 549
Pagarus 2-7 1.52 7.4 10.5 4-7 798 100 258 357 136 152 549
Shrimp 2-7 1.14 7.4 9.7 2-7 1270 76 298 374 136 152 549
Lobster 2-7 1.52 7.4 10.5 2-7 1270 100 298 397 136 152 549
Encope 1-19 1.52 8.4 11.5 2-7 1270 115 347 461 158 152 366
Sanderab 1/0-7 1.52 9.4 12.4 2-7 1270 128 409 537 182 152 366
Echinus 1/0-19 1.52 9.5 12.5 2-7 1270 130 409 539 182 152 366
Gammarus 1/0-7 1.52 9.4 12.4 1/0-7 2023 128 473 601 182 152 366
Leda 1/0-19 1.52 9.5 12.5 1/0-7 2023 130 473 603 182 152 366
Crayfish 2/0-7 1.52 10.5 13.6 2-7 1270 146 487 631 210 – 457
Sipho 2/0-19 1.52 10.6 13.7 2-7 1270 147 487 634 210 – 457
Dungenese 2/0-7 1.52 10.5 13.6 2/0-7 2445 146 595 740 210 – 457
Cyclops 2/0-7 1.52 10.6 13.7 2/0-7 2445 147 595 743 210 – 457
Slug 3/0-7 1.52 11.8 14.8 1/0-7 2023 165 650 816 242 – 366
Fulgur 3/0-19 1.52 11.9 15 1/0-7 2023 168 650 819 242 – 366
Balanus 3/0-19 2.03 11.9 16 1/0-7 2023 216 650 868 242 – 366
Stonecrab 3/0-7 1.52 11.8 14.8 3/0-7 3080 165 752 917 242 – 366
Flustra 3/0-7 1.52 11.9 15 3/0-7 3080 168 752 920 242 – 366
Crisia 3/0-19 2.03 11.9 16 3/0-7 3080 216 752 969 242 – 305
Squid 4/0-7 1.52 13.3 16.3 2/0-7 2431 191 820 1011 279 – 305
Arca 4/0-19 1.52 13.4 16.5 2/0-7 2431 192 820 1012 279 – 305
Bugula 4/0-19 2.03 13.4 17.5 2/0-7 2431 246 820 1066 279 – 305
Kingerab 4/0-7 1.52 13.3 16.3 4/0-7 3883 191 948 1137 279 – 305
Lepas 4/0-19 1.52 13.4 16.5 4/0-7 3883 192 948 1140 279 – 305
Cassi 4/0-19 20.03 13.4 17.5 4/0-7 3883 246 948 1194 279 – 305
ACSR Neutral Messenger
Paludina 6-1 1.14 4.1 6.4 6-6/1 540 42 112 170 79 305 762
Voluta 6-7 1.14 4.7 7.0 6-6/1 540 48 112 176 79 305 671
Bolma 6-7 1.52 4.7 7.7 6-6/1 540 64 112 194 79 305 671
Scallop 4-1 1.14 5.2 7.5 6-6/1 540 52 155 225 138 152 518
Strombus 4-7 1.14 5.9 8.2 6-6/1 540 60 155 232 138 152 457
Carnea 4-7 1.52 5.9 8.9 6-6/1 540 80 155 253 138 152 457
Whelk 4-1 1.14 5.2 7.5 4-6/1 844 52 177 258 138 152 518
Periwinkle 4-7 1.14 5.9 8.2 4-6/1 844 60 177 263 138 152 457
Calma 4-7 1.52 5.9 8.9 4-6/1 844 80 177 284 138 152 457
Cockle 2-7 1.14 5.9 8.2 4-6/1 844 60 247 335 183 152 549
Gebia 2-7 1.52 5.9 8.9 4-6/1 844 80 247 354 183 152 549
Conch 2-7 1.14 5.9 8.2 2-6/1 1293 60 281 384 183 152 549
Uca 2-7 1.52 5.9 8.9 2-6/1 1293 80 281 405 183 152 549
Vermeths 1-7 1.52 8.3 11.4 1-6/1 1610 113 354 522 210 152 457
Atya 1-19 1.52 8.3 11.4 1-6/1 1610 113 430 524 210 152 457
Janthina 1/0-7 1.52 8.3 11.4 2-6/1 1293 113 393 549 242 152 366
Ranella 1/0-19 1.52 9.5 12.5 2-6/1 1293 130 393 566 242 152 366
Neritina 1/0-7 1.52 9.4 12.4 1/0-6/1 1987 128 448 644 242 152 366
Cenia 1/0-19 1.52 9.5 12.5 1/0-6/1 1987 130 448 646 242 152 366
Cavolinia 2/0-7 1.52 10.5 13.6 1-6/1 1610 146 496 697 279 – 579
Clio 2/0-19 1.52 10.6 13.7 1-6/1 1610 147 496 698 279 – 457
Runcina 2/0-7 1.52 10.5 13.6 2/0-6/1 2404 146 564 796 279 – 457
Triton 2/0-19 1.52 10.6 13.7 2/0-6/1 2404 147 564 799 279 – 457
Sanddollar 3/0-7 1.52 11.8 14.8 1/0-6/1 1987 165 625 860 322 – 396
Aega 3/0-19 1.52 11.9 15.0 1/0-6/1 1987 168 625 862 322 – 396
Pisa 3/0-19 2.03 11.9 16.0 1/0-6/1 1987 216 625 911 322 – 396
Cherrystone 3/0-7 1.52 11.8 14.8 3/0-6/1 3003 165 711 987 322 – 396
Mursia 3/0-19 1.52 11.9 15.0 3/0-6/1 3003 168 711 990 322 – 396
Mysis 3/0-19 2.03 11.9 16.0 3/0-6/1 3003 216 711 990 322 – 396
Cuttlefish 4/0-7 1.52 13.3 16.3 2/0-6/1 2404 191 787 1066 372 – 305
Cerapus 4/0-19 1.52 13.4 16.5 2/0-6/1 2404 192 787 1069 372 – 305
Nepatus 4/0-19 2.03 13.4 17.5 2/0-6/1 2404 246 787 1121 372 – 305
Razor 4/0-7 1.52 13.3 16.3 4/0-6/11 3788 191 897 1225 372 – 305
Zuzara 4/0-19 1.52 13.4 16.5 4/0-6/1 3788 192 897 1229 372 – 305
Alima 4/0-19 2.03 13.4 17.5 4/0-6/1 3788 246 897 1281 372 – 305
Callista 266.8-19 2.03 15.1 19.1 3/0-6/1 3003 280 994 1384 410 – 305
Dosinia 266.8-19 2.03 15.1 19.1 266.8-18/1 3121 280 1133 1472 410 – 305
Cowry 336.4-19 2.03 16.9 21.0 4/0-6/1 3788 320 1253 1713 506 – 305
Limpet 336.4-19 2.03 16.9 21.0 336.4-18/1 3937 320 1429 1823 506 – 305
