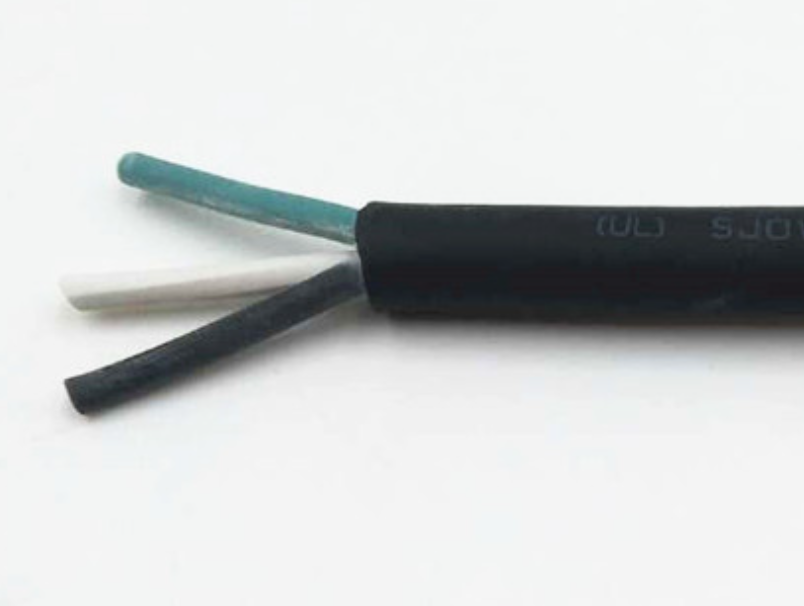

Application
Type SJO flexible cord is a great solution for applications involving portable appliances, small motors, industrial
machinery and other equipment that may be exposed to oils and acids. This cable is extremely flexible,
resistant to oil, moisture, and abrasion, making it a strong choice for outdoor or indoor applications
Temperature rating and voltage rating
60°C / 75°C / 90°C / 105°C and 300V
Standards and approval
UL62 – Flexible Cords and Cables
CSA 22.2 No. 49 – Flexible Cords and Cables
UL & CSA listed, UL File No. E518108
Construction
Conductor: Bare or tinned soft copper conductor
Separator: Polyester tape
Insulation: EP Rubber
Core identification
2 cores: black,white
3 cores:black, white, green
4 cores:black, white, green, red
Binder:Semi-conductive wrap tape with filler if necessary
Jacket: Rubber compound
Technical Parameter
| Size | Conductor Stranding | Insulation Thickness | Jacket Thickness | Approx. Overall Diameter | Approx. Net Weight | ||||
| mm | mils | mm | mils | mm | inch | kg/km | lbs/1000ft | ||
| 2X18AWG | 16X30 | 0.76 | 30 | 0.76 | 30 | 7.4 | 0.291 | 82 | 55 |
| 3X18AWG | 16X30 | 0.76 | 30 | 0.76 | 30 | 7.9 | 0.310 | 107 | 72 |
| 4X18AWG | 16X30 | 0.76 | 30 | 0.76 | 30 | 8.6 | 0.340 | 122 | 82 |
| 2X16AWG | 26X30 | 0.76 | 30 | 0.76 | 30 | 7.9 | 0.312 | 101 | 68 |
| 3X16AWG | 26X30 | 0.76 | 30 | 0.76 | 30 | 8.4 | 0.331 | 127 | 85 |
| 4X16AWG | 26X30 | 0.76 | 30 | 0.76 | 30 | 9.3 | 0.367 | 152 | 102 |
| 2X14AWG | 41X30 | 0.76 | 30 | 0.76 | 30 | 8.7 | 0.344 | 119 | 80 |
| 3X14AWG | 41X30 | 0.76 | 30 | 0.76 | 30 | 9.4 | 0.370 | 161 | 108 |
| 4x14AWG | 41X30 | 0.76 | 30 | 0.76 | 30 | 10.4 | 0.410 | 194 | 130 |
| 2X12AWG | 65X30 | 0.76 | 30 | 1.14 | 45 | 10.8 | 0.425 | 186 | 125 |
| 3X12AWG | 65X30 | 0.76 | 30 | 1.14 | 45 | 11.3 | 0.445 | 222 | 149 |
| 4x12AWG | 65X30 | 0.76 | 30 | 1.14 | 45 | 12.3 | 0.485 | 283 | 190 |
| 2X10AWG | 104X30 | 1.14 | 45 | 1.52 | 60 | 14.5 | 0.572 | 322 | 216 |
| 3X10AWG | 104X30 | 1.14 | 45 | 1.52 | 60 | 15.3 | 0.601 | 390 | 262 |
| 4x10AWG | 104X30 | 1.14 | 45 | 1.52 | 60 | 16.8 | 0.660 | 479 | 322 |
