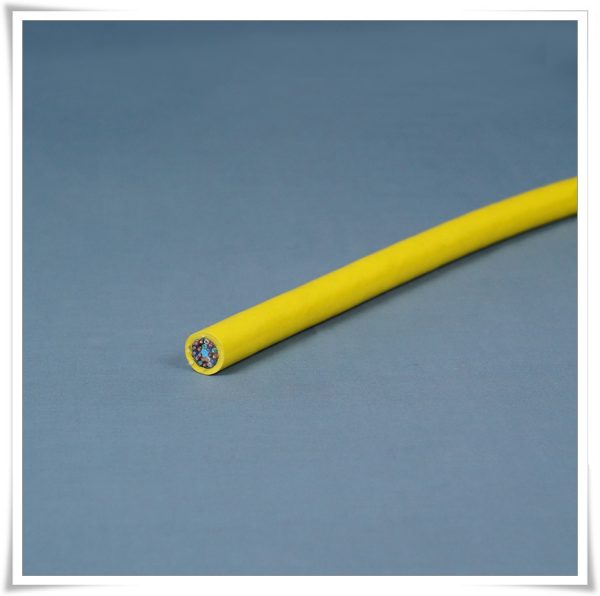

Application
This cable is intended for use as a payout and retractile cable in applications.
Temperature rating and voltage rating
90ºC Dry and Wet, 600V
Standards and approval
CSA C22.2 No. 230
CSA C22.2 No. 239
UL1277
CSA Approved
MSHA Approved
Construction
Conductor: Tinned soft copper conductor
Insulation: Cross-linked polyethylene (XLPE) with a clear nylon sheath
Core identification
For size 16AWG, it is color coded and numbers
For sizes 10AWG, 12AWG and14AWG, the color code is black with numbers
Filler: blue PP fillers
Wrap: Semi-conductive cotton tape
Jacket: CSPE compound in reinforced with nylon molded into the approximate center of the jacket
Technical Parameter
| Size | Conductor Strands | XLPE Insulation Thickness | Nylon Sheath Thickness | CSPE Jacket Thickness | Approx. Overall Diameter | Approx. Net Weight | |||||
| #/AWG | mm | mils | mm | mils | mm | mils | mm | inch | kg/km | lbs/1000ft | |
| 6x16AWG | 65/34 | 0.38 | 15 | 0.13 | 5 | 2.92 | 0.115 | 14.0 | 0.551 | 279 | 188 |
| 8x16AWG | 65/34 | 0.38 | 15 | 0.13 | 5 | 2.92 | 0.115 | 15.8 | 0.622 | 349 | 234 |
| 10x16AWG | 65/34 | 0.38 | 15 | 0.13 | 5 | 2.92 | 0.115 | 17.5 | 0.689 | 422 | 283 |
| 12x16AWG | 65/34 | 0.38 | 15 | 0.13 | 5 | 3.43 | 0.135 | 17.9 | 0.705 | 459 | 309 |
| 16x16AWG | 65/34 | 0.38 | 15 | 0.13 | 5 | 3.43 | 0.135 | 19.3 | 0.760 | 549 | 369 |
| 20x16AWG | 65/34 | 0.38 | 15 | 0.13 | 5 | 3.43 | 0.135 | 21.0 | 0.827 | 652 | 438 |
| 24x16AWG | 65/34 | 0.38 | 15 | 0.13 | 5 | 3.43 | 0.135 | 22.6 | 0.890 | 755 | 507 |
| 33x16AWG | 65/34 | 0.38 | 15 | 0.13 | 5 | 3.94 | 0.155 | 25.3 | 0.996 | 970 | 652 |
| 36x16AWG | 65/34 | 0.38 | 15 | 0.13 | 5 | 3.94 | 0.155 | 26.0 | 1.024 | 1035 | 696 |
| 41x16AWG | 65/34 | 0.38 | 15 | 0.13 | 5 | 3.94 | 0.155 | 27.0 | 1.063 | 1139 | 765 |
| 49x16AWG | 65/34 | 0.38 | 15 | 0.13 | 5 | 3.94 | 0.155 | 29.6 | 1.165 | 1309 | 880 |
| 7x14AWG | 41/30 | 0.38 | 15 | 0.13 | 5 | 2.92 | 0.115 | 16.4 | 0.646 | 398 | 267 |
| 8x14AWG | 41/30 | 0.38 | 15 | 0.13 | 5 | 2.92 | 0.115 | 17.2 | 0.677 | 441 | 297 |
| 10x14AWG | 41/30 | 0.38 | 15 | 0.13 | 5 | 2.92 | 0.115 | 19.3 | 0.760 | 539 | 362 |
| 12x14AWG | 41/30 | 0.38 | 15 | 0.13 | 5 | 3.43 | 0.135 | 19.6 | 0.772 | 585 | 393 |
| 16x14AWG | 41/30 | 0.38 | 15 | 0.13 | 5 | 3.43 | 0.135 | 21.1 | 0.831 | 712 | 478 |
| 20x14AWG | 41/30 | 0.38 | 15 | 0.13 | 5 | 3.43 | 0.135 | 23.2 | 0.913 | 854 | 574 |
| 24x14AWG | 41/30 | 0.38 | 15 | 0.13 | 5 | 3.43 | 0.135 | 25.0 | 0.984 | 997 | 670 |
| 6x12AWG | 65/30 | 0.38 | 15 | 0.13 | 5 | 2.92 | 0.115 | 16.4 | 0.646 | 439 | 295 |
| 8x12AWG | 65/30 | 0.38 | 15 | 0.13 | 5 | 2.92 | 0.115 | 18.7 | 0.736 | 562 | 378 |
| 12x12AWG | 65/30 | 0.38 | 15 | 0.13 | 5 | 3.43 | 0.135 | 21.2 | 0.835 | 756 | 508 |
| 20x12AWG | 65/30 | 0.38 | 15 | 0.13 | 5 | 3.43 | 0.135 | 25.3 | 0.996 | 1129 | 758 |
| 30x12AWG | 65/30 | 0.38 | 15 | 0.13 | 5 | 3.43 | 0.135 | 28.7 | 1.130 | 1527 | 1026 |
| 6x10AWG | 105/30 | 0.51 | 15 | 0.13 | 5 | 2.92 | 0.115 | 19.6 | 0.772 | 631 | 424 |
| 8x10AWG | 105/30 | 0.51 | 15 | 0.13 | 5 | 2.92 | 0.115 | 22.6 | 0.890 | 825 | 554 |
| 12x10AWG | 105/30 | 0.51 | 15 | 0.13 | 5 | 3.43 | 0.135 | 25.6 | 1.008 | 1107 | 744 |
