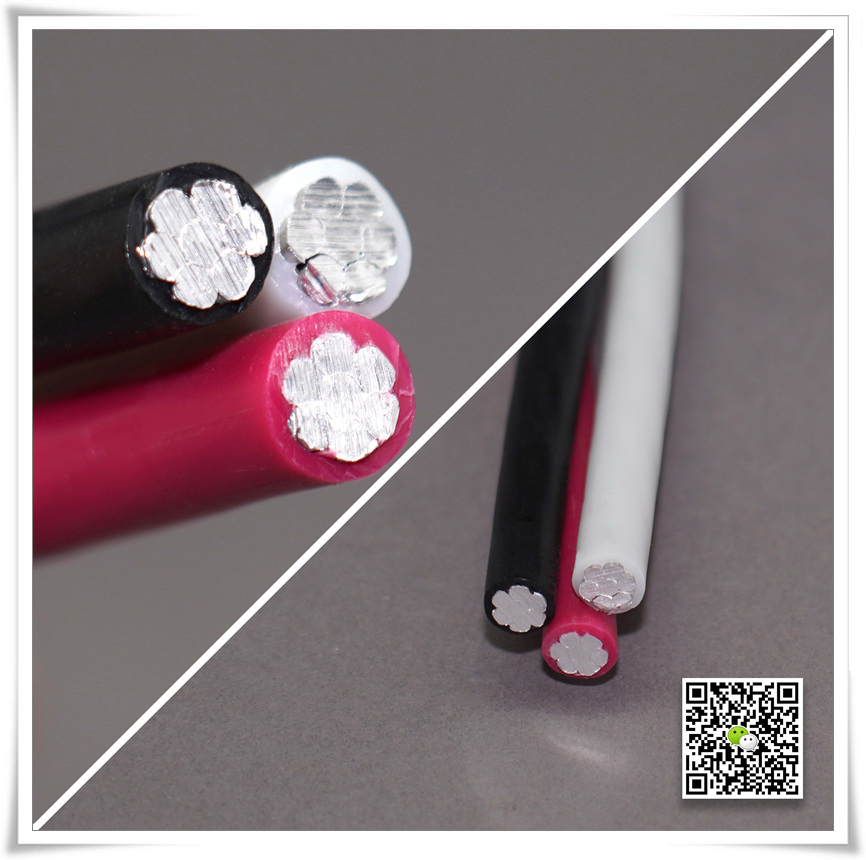

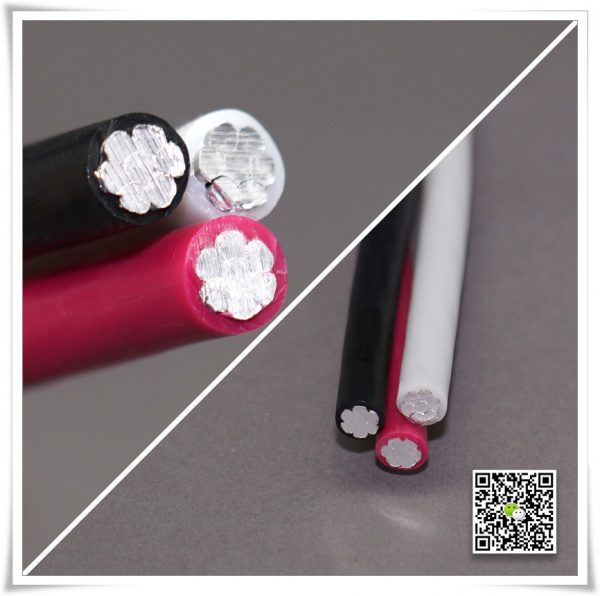

Aluminum Secondary UD Cable, 600V, 90C
Application
This cable is used for secondary distribution and underground services rated 600V. It may be directly buried in earth or installed in duct in both wet or dry locations.
Standards Reference
- ASTM B-231: Concentric lay stranded aluminum 1350 conductors
- ASTM B800 :Specification for 8000 Series Aluminum Alloy Wire for Electrical Purposes- Annealed and Intermediate Tempers
- ASTM B801: Specification for Concentric-Lay-Stranded Conductors of 8000 Series Aluminum Alloy for Subsequent Covering or Insulation
- ICEA S-105-692: 600V Single layer thermoset insulated utility underground distribution cable
- UL854: Service entrance Cables
Construction
Conductors: Class B compressed concentric lay stranded 1350 aluminum alloy per ASTM B231 or AA-8000 aluminum alloy per ASTM B800 & B801.
Insulation: Phase conductors in black thermoset cross-linked polyethylene (XLPE). Neutral conductor in black thermoset cross-linked polyethylene (XLPE) identified by yellow striping or full yellow jacket.
Product Features:
- Temperature rating of 90˚C dry, wet, and direct burial
- Heat, ozone, oil, and chemical resistant
- Tear and abrasion resistant
Configuration

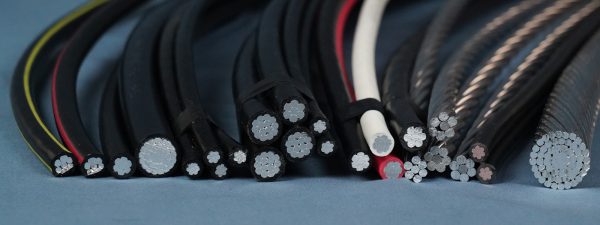

Black phase insulated conductors cabled with neutral. Neutral will be marked with yellow striping or yellow jacket.
Single Conductor Secondary UD Cable
| Code word | size | Number of Wires | Insulation Thickness | Insulation Diameter | Approx. Net weight | Ampacity | |
| AWG or MCM | mm | mm | kg/km | direct buried | Pole riser conduit | ||
| Cornell | 8 | 7 | 1.52 | 6.6 | 51 | 74 | 36 |
| Princeton | 6 | 7 | 1.52 | 7.6 | 70 | 96 | 47 |
| Mercer | 4 | 7 | 1.52 | 8.9 | 100 | 117 | 60 |
| Clemson | 2 | 7 | 1.52 | 10.4 | 144 | 154 | 82 |
| Kenyon | 1 | 19 | 2.03 | 12.4 | 190 | 171 | 97 |
| Harvard | 1/0 | 19 | 2.03 | 13.2 | 229 | 193 | 112 |
| Yale | 2/0 | 19 | 2.03 | 14.5 | 277 | 221 | 132 |
| Tufts | 3/0 | 19 | 2.03 | 15.7 | 335 | 253 | 155 |
| Beloit | 4/0 | 19 | 2.03 | 17.3 | 408 | 290 | 185 |
| Hofstra | 250 | 37 | 2.41 | 19.1 | 490 | 317 | 199 |
| Gonzaga | 300 | 37 | 2.41 | 20.6 | 573 | 349 | 223 |
| Rutgers | 350 | 37 | 2.41 | 21.6 | 653 | 381 | 248 |
| Dartmouth | 400 | 37 | 2.41 | 22.9 | 734 | 410 | 272 |
| Brown | 450 | 37 | 2.41 | 23.9 | 814 | 439 | 295 |
| emory | 500 | 37 | 2.41 | 24.9 | 894 | 464 | 318 |
| Duke | 600 | 61 | 2.79 | 27.7 | 1079 | 514 | 355 |
| Furman | 700 | 61 | 2.79 | 29.5 | 1235 | 549 | 386 |
| Sewanee | 750 | 61 | 2.79 | 30.2 | 1314 | 567 | 403 |
| Fordham | 1000 | 61 | 2.79 | 34.0 | 1702 | 665 | 492 |
Duplex Secondary UD Cable
| Code word | Phase Conductors | Neutral | Diameter | Approx. Weight | Allowable Ampacities (Raceway, Cable Tray, Direct Burial) | |||||
| Size | Number of Wires | Insulation Thickness | Size | Number of Wires | Insulation Thickness | Single Phase Conductor | Complete Cable | |||
| AWG | mm | AWG | mm | mm | mm | Kg/km | A | |||
| Duplex with Yellow extruded striple Neutral | ||||||||||
| Bard | 8 | 7 | 1.52 | 8 | 7 | 1.52 | 6.7 | 13.5 | 93 | 55 |
| Clafin | 6 | 7 | 1.52 | 6 | 7 | 1.52 | 7.6 | 15.1 | 135 | 70 |
| Delgado | 4 | 7 | 1.52 | 4 | 7 | 1.52 | 8.7 | 17.5 | 192 | 110 |
| Everett | 2 | 7 | 1.52 | 2 | 7 | 1.52 | 11.1 | 22.3 | 303 | 180 |
Triplex Secondary UD Cable
| Code word | Phase Conductors | Neutral | Diameter | Approx. Weight | Allowable Ampacities (Raceway, Cable Tray, Direct Burial) | |||||
| Size | Number of Wires | Insulation Thickness | Size | Number of Wires | Insulation Thickness | Single Phase Conductor | Complete Cable | |||
| AWG or MCM | mm | AWG or MCM | mm | mm | mm | Kg/km | A | |||
| Triplex with Yellow extruded striple Neutral | ||||||||||
| Erskine | 6 | 7 | 1.52 | 6 | 7 | 1.52 | 7.6 | 16.3 | 201 | 60 |
| Vassar | 4 | 7 | 1.52 | 4 | 7 | 1.52 | 8.7 | 18.8 | 287 | 75 |
| Stephens | 2 | 7 | 1.52 | 4 | 7 | 1.52 | 10.2 | 22.1 | 375 | 110 |
| Ramapo | 2 | 7 | 1.52 | 2 | 7 | 1.52 | 10.2 | 22.1 | 419 | 110 |
| Brenau | 1/0 | 19 | 2.03 | 2 | 7 | 1.52 | 13.2 | 28.5 | 583 | 150 |
| Bergen | 1/0 | 19 | 2.03 | 1/0 | 19 | 2.03 | 13.2 | 28.5 | 665 | 150 |
| Converse | 2/0 | 19 | 2.03 | 1 | 19 | 2.03 | 14.3 | 30.9 | 723 | 165 |
| Hunter | 2/0 | 19 | 2.03 | 2/0 | 19 | 2.03 | 14.3 | 30.9 | 808 | 165 |
| Hollins | 3/0 | 19 | 2.03 | 1/0 | 19 | 2.03 | 15.6 | 33.6 | 877 | 190 |
| Rockland | 3/0 | 19 | 2.03 | 3/0 | 19 | 2.03 | 15.6 | 33.6 | 983 | 190 |
| Sweetbriar | 4/0 | 19 | 2.03 | 2/0 | 19 | 2.03 | 17.1 | 36.8 | 1070 | 225 |
| Monmouth | 4/0 | 19 | 2.03 | 4/0 | 19 | 2.03 | 17.1 | 36.8 | 1201 | 225 |
| Pratt | 250 | 37 | 2.41 | 3/0 | 19 | 2.03 | 19 | 40.9 | 1285 | 250 |
| Wesleyan | 350 | 37 | 2.41 | 4/0 | 19 | 2.03 | 21.6 | 46.6 | 1686 | 305 |
| Newark | 350 | 37 | 2.41 | 350 | 37 | 2.41 | 22.8 | 49.1 | 2171 | 305 |
| Holyoke | 500 | 37 | 2.41 | 300 | 37 | 2.41 | 24.9 | 53.7 | 2325 | 380 |
| Rider | 500 | 37 | 2.41 | 350 | 37 | 2.41 | 24.9 | 53.7 | 2407 | 380 |
| Seton Hall | 750 | 61 | 2.79 | 750 | 61 | 2.79 | 30.2 | 65.1 | 3908 | 470 |
Quadruplex Secondary UD Cable
| Code word | Phase Conductors | Neutral | Diameter | Approx. Weight | Allowable Ampacities (Raceway, Cable Tray, Direct Burial) | |||||
| Size | Number of Wires | Insulation Thickness | Size | Number of Wires | Insulation Thickness | Single Phase Conductor | Complete Cable | |||
| AWG or MCM | mm | AWG or MCM | mm | mm | mm | Kg/km | A | |||
| Duadruplex with Yellow extruded striple Neutral | ||||||||||
| Tulsa | 4 | 7 | 1.52 | 4 | 7 | 1.52 | 8.7 | 21.1 | 385 | 85 |
| Dyke | 2 | 7 | 1.52 | 4 | 7 | 1.52 | 10.2 | 24.7 | 518 | 110 |
| Wittenberg | 2 | 7 | 1.52 | 2 | 7 | 1.52 | 10.2 | 24.7 | 562 | 110 |
| Notre Dame | 1/0 | 19 | 2.03 | 2 | 7 | 1.52 | 13.2 | 32 | 810 | 150 |
| Purdue | 1/0 | 19 | 2.03 | 1/0 | 19 | 2.03 | 13.2 | 32 | 892 | 150 |
| Syracuse | 2/0 | 19 | 2.03 | 1 | 19 | 2.03 | 14.3 | 34.6 | 998 | 165 |
| Lafayette | 2/0 | 19 | 2.03 | 2/0 | 19 | 2.03 | 14.3 | 34.6 | 1084 | 165 |
| Swarthmore | 3/0 | 19 | 2.03 | 1/0 | 19 | 2.03 | 15.6 | 37.7 | 1211 | 190 |
| Davidson | 3/0 | 19 | 2.03 | 3/0 | 19 | 2.03 | 15.6 | 37.7 | 1317 | 190 |
| McPherson | 4/0 | 19 | 2.03 | 2 | 7 | 1.52 | 17.1 | 41.2 | 1338 | 225 |
| Wake Forest | 4/0 | 19 | 2.03 | 2/0 | 19 | 2.03 | 17.1 | 41.2 | 1478 | 225 |
| Earlham | 4/0 | 19 | 2.03 | 4/0 | 19 | 2.03 | 17.1 | 41.2 | 1609 | 225 |
| Rust | 250 | 37 | 2.41 | 3/0 | 19 | 2.03 | 19 | 45.8 | 1810 | 260 |
| Slippery Rock | 350 | 37 | 2.41 | 4/0 | 19 | 2.03 | 21.6 | 52.1 | 2326 | 305 |
| Wofford | 500 | 37 | 2.41 | 350 | 37 | 2.41 | 24.9 | 60.1 | 3301 | 380 |
| Westminster | 750 | 61 | 2.79 | 350 | 37 | 2.41 | 30.2 | 73 | 4567 | 470 |
