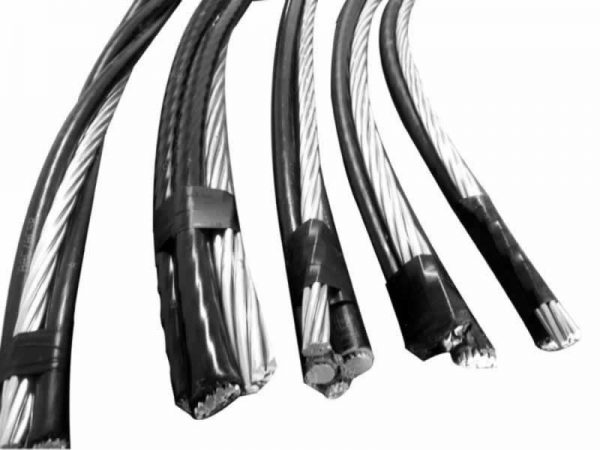

Duplex Service Drop Cable, 600V, 90C
Application
This duplex cable is suited for use as drop cable from a pole mounted transformer to the service entrance of a
structure, or as secondary distribution between poles.
Construction
One insulated phase conductors twisted around a bare aluminum, aluminum alloy or ACSR neutral conductor
Conductors: Aluminum 1350-H19 wire
Insulation: Black thermoset cross-linked polyethylene (XLPE)
Neutral: Bare aluminum, aluminum alloy or ACSR
Sandards Reference
- ASTM B-230: Aluminum 1350-H19 wire for electrical purposes
- ASTM B-231: Concentric lay stranded aluminum 1350 conductors
- ASTM B-232: Concentric lay stranded aluminum conductors coated-steel reinforced
- ICEA S-76-474: Neutral supported power cable assemblies with weather resistant extruded insulation rated at 600V
| Code
word |
Phase Conductors | Bare Neutral Messenger | Nominal Weight | Ampacity | Standard Package | |||||||
| Size &
Number of Wires |
Insulation
Thickness |
Nominal Diameter | Size &
Number of Wires |
Rated
Strength |
kg/km | Coils | Reels | |||||
| Bare | O.D. | XLPE | AL or Alloy | Total | ||||||||
| mm | mm | mm | kg | A | m | m | ||||||
| AAC Neutral Messenger | ||||||||||||
| Pekingese | 6-1 | 1.14 | 4.1 | 6.4 | 6-7 | 255 | 20.8 | 72.9 | 94 | 78 | 305 | 1000 |
| Collie | 6-7 | 1.14 | 4.6 | 6.9 | 6-7 | 255 | 23.8 | 72.9 | 97 | 78 | 305 | 1000 |
| Cocker | 6-7 | 1.52 | 4.6 | 7.7 | 6-7 | 255 | 32.7 | 72.9 | 106 | 78 | 305 | 1000 |
| Dachshund | 4-1 | 1.14 | 5.2 | 7.5 | 6-7 | 400 | 26.8 | 114.6 | 141 | 103 | 305 | 500 |
| Spaniel | 4-7 | 1.14 | 5.9 | 8.2 | 6-7 | 400 | 29.8 | 116.1 | 146 | 103 | 305 | 500 |
| Cairn | 4-7 | 1.52 | 5.9 | 8.9 | 6-7 | 400 | 40.2 | 116.1 | 156 | 103 | 305 | 500 |
| Doberman | 2-7 | 1.14 | 7.4 | 9.7 | 2-7 | 612 | 38.7 | 184.5 | 223 | 136 | 152 | 500 |
| Airedale | 1-19 | 1.52 | 8.4 | 11.5 | 1-7 | – | 56.5 | 233.6 | 290 | 158 | 152 | 500 |
| Basset | 1/0-7 | 1.52 | 9.3 | 12.4 | 1/0-7 | 903 | 64.0 | 294.7 | 359 | 182 | 152 | 457 |
| Malemute | 1/0-19 | 1.52 | 9.4 | 12.5 | 1/0-7 | 903 | 64.0 | 294.7 | 359 | 182 | 152 | 457 |
| 6201 Alloy Neutral Messenger | ||||||||||||
| Chihuahua | 6-1 | 1.14 | 4.1 | 6.4 | 6-7 | 499 | 20.8 | 72.9 | 94 | 78 | 305 | 1000 |
| Vizsla | 6-7 | 1.14 | 4.6 | 6.9 | 6-7 | 499 | 23.8 | 72.9 | 97 | 78 | 305 | 1000 |
| Harrier | 4-1 | 1.14 | 5.2 | 7.5 | 4-7 | 798 | 26.8 | 116.1 | 143 | 103 | 305 | 500 |
| Whippet | 4-7 | 1.14 | 5.9 | 8.2 | 4-7 | 798 | 29.8 | 116.1 | 146 | 103 | 305 | 500 |
| Schnauzer | 2-7 | 1.14 | 7.4 | 9.7 | 2-7 | 1270 | 38.7 | 184.5 | 223 | 136 | 152 | 500 |
| Afghan | 1/0-7 | 1.52 | 9.3 | 12.4 | 1/0-7 | 2023 | 64.0 | 296.1 | 360 | 182 | 152 | 457 |
| Heeler | 1-19 | 1.52 | 9.4 | 12.5 | 1/0-7 | 2023 | 64.0 | 296.1 | 360 | 182 | 152 | 457 |
| ACSR Neutral Messenger | ||||||||||||
| Setter | 6-1 | 1.14 | 4.1 | 6.4 | 6-6/1 | 540 | 20.8 | 72.9 | 94 | 78 | 305 | 1000 |
| Shepherd | 6-7 | 1.14 | 4.6 | 6.9 | 6-6/1 | 540 | 23.8 | 72.9 | 97 | 78 | 305 | 1000 |
| Retriever | 6-7 | 1.52 | 4.6 | 7.7 | 6-6/1 | 540 | 32.7 | 72.9 | 106 | 78 | 305 | 1000 |
| Eskimo | 4-1 | 1.14 | 5.2 | 7.5 | 4-6/1 | 844 | 26.8 | 114.6 | 141 | 103 | 305 | 500 |
| Terrier | 4-7 | 1.14 | 5.9 | 8.2 | 4-6/1 | 844 | 29.8 | 116.1 | 146 | 103 | 305 | 500 |
| Yorkshire | 4-7 | 1.52 | 5.9 | 8.9 | 4-6/1 | 844 | 40.2 | 116.1 | 156 | 103 | 305 | 500 |
| Chow | 2-7 | 1.14 | 7.4 | 9.7 | 2-6/1 | 1293 | 38.7 | 184.5 | 223 | 136 | 152 | 500 |
| Labrador | 1-19 | 1.52 | 8.4 | 11.5 | 1-6/1 | 1610 | 56.5 | 233.6 | 290 | 158 | 152 | 500 |
| Bloodhound | 1/0-7 | 1.52 | 9.3 | 12.4 | 1/0-6/1 | 1987 | 64.0 | 294.7 | 359 | 182 | 152 | 457 |
| Bull | 1/0-19 | 1.52 | 9.4 | 12.5 | 1/0-6/1 | 1987 | 64.0 | 294.7 | 359 | 182 | 152 | 457 |
